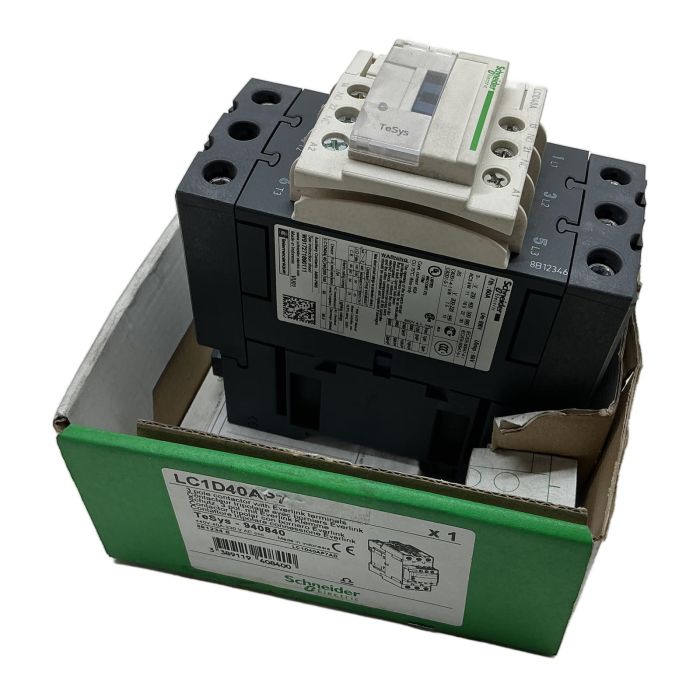

Schneider Electric TeSys D 3-Pole Contactor

Description

The LC1D40AP7 is a high-quality 3-pole contactor from Schneider Electric's renowned TeSys D series. It is engineered for controlling motors and other power circuits with high reliability. This model features a 40A AC-3 operational current, a 230V AC coil, and built-in auxiliary contacts, making it a versatile solution for a wide range of industrial automation and control panel applications. The innovative Everlink terminals provide a secure, long-lasting connection, reducing the risk of loosening due to vibration or temperature changes. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: Schneider Electric
• Model: LC1D40AP7
• Poles: 3-Pole
• Rated Operational Current (AC-3): 40 A at less than or equal to 440 V AC
• Control Circuit Voltage: 230 V AC 50/60 Hz
• Auxiliary Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC)
• Terminal Type: Everlink BTR screw terminals
• Mounting: DIN Rail or Plate

Label Info

• Manufacturer Part Number: 940840
• EAN: 3389119408400

Application

Ideal for motor control in applications such as HVAC, material handling, packaging machinery, and general industrial automation systems. Also suitable for switching non-inductive loads (AC-1).

Country of Origin

Made in Indonesia.

CO2 Impact

Choosing this reused contactor prevents the emission of approximately 34 kg of CO2, which is comparable to the savings of driving a car for 170 kilometers.

Availability

This item is in stock and ready for immediate dispatch.

FAQ

The AC-3 rating (40A) is for squirrel-cage motor starting, which is an inductive load. The AC-1 rating, for non-inductive or slightly inductive loads like resistance heaters, is higher for this model, typically 60A. Always use the AC-3 rating for motor applications.

Yes, the TeSys D series is modular. You can easily add front-mount (LADN) or side-mount (LADS) auxiliary contact blocks to expand the number of NO and NC contacts as needed for your control circuit.

Everlink terminals are a patented Schneider Electric technology that provides a spring-loaded pressure system on the screw connection. This ensures a permanent, secure connection that compensates for conductor creep, reducing maintenance needs and improving safety and reliability.
