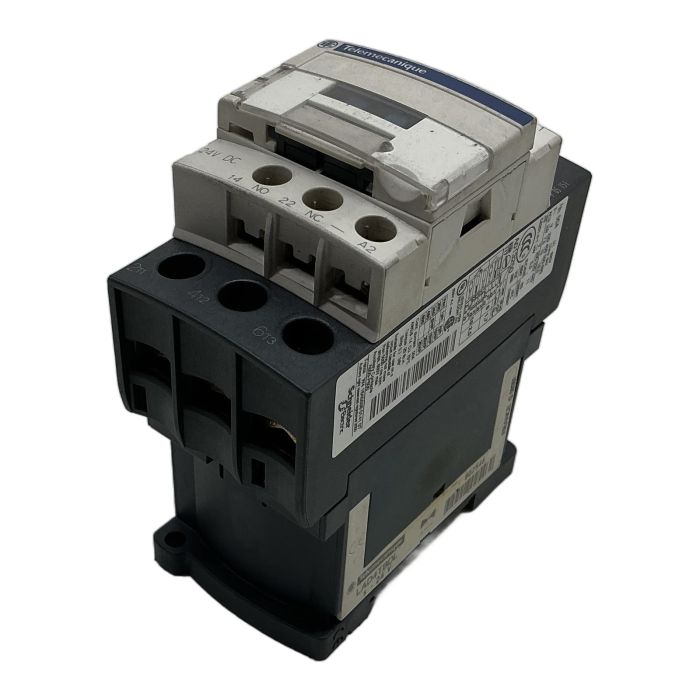

Schneider Electric LC1D32BD TeSys D Contactor

Description

The Schneider Electric LC1D32BD is a high-performance 3-pole contactor from the trusted TeSys D series. It is engineered for controlling motors and other power circuits in industrial environments. This contactor is designed for reliability and a long operational lifespan, featuring a 24V DC coil and integrated auxiliary contacts (1NO + 1NC). Its compact size allows for easy integration into control cabinets.

Specifications

• Manufacturer: Schneider Electric
• Series: TeSys D
• Model: LC1D32BD
• Number of Poles: 3
• Control Circuit Voltage: 24V DC
• Rated Operational Current (AC-3, <= 440V): 32 A
• Conventional Free Air Thermal Current (AC-1): 50 A
• Auxiliary Contact Composition: 1 NO + 1 NC
• Rated Insulation Voltage (Ui): 690 V
• Mounting: DIN Rail or Plate

Label Info

• AC-3 Power Rating: 15 kW at 400V
• Ith: 50A
• Ui: 690V
• Coil: 24V DC

Application

This contactor is ideal for a wide range of applications, including motor control for pumps, fans, conveyors, and compressors, as well as for switching resistive loads like heating and lighting systems.

Country of Origin

Made in France.

CO2 Impact

By purchasing this refurbished item, you contribute to a more sustainable future by avoiding 23.6 kg of CO2, which is comparable to the emissions from driving a standard car for 118 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The AC-1 rating (Ith 50A) is for non-inductive or slightly inductive loads, like resistance furnaces or heaters. The AC-3 rating (32A) is specifically for squirrel-cage motors during starting, which is a more demanding application. Always use the AC-3 rating for motor control calculations.

Yes, the TeSys D series is modular. You can add front-mount (LADN) or side-mount (LAD8N) auxiliary contact blocks to increase the number of available NO and NC contacts as needed for your control circuit.

This particular unit is fitted with a Telemecanique LAD4TBDL module, which is a transient voltage suppressor with a bi-directional peak limiting diode. This protects the DC coil and the controlling PLC output from voltage spikes generated when the coil is de-energized.
