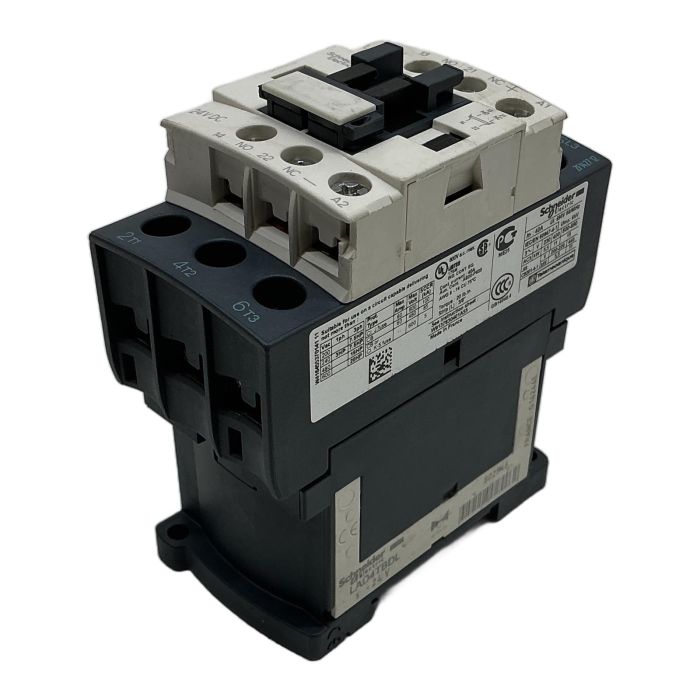

Schneider Electric LC1D25BD TeSys D Contactor

Description

The LC1D25BD is a high-performance 3-pole contactor from Schneider Electric's trusted TeSys D range. It is engineered for controlling motors and other electrical loads with high reliability. This model features a 24V DC coil with low power consumption, making it suitable for direct control from PLC outputs. With its compact design and robust construction, it is an industry standard for automation and control panels.

Specifications

• Manufacturer: Schneider Electric
• Series: TeSys D
• Model: LC1D25BD
• Poles: 3-Pole
• Coil Voltage: 24V DC
• AC-3 Rated Current (@ <= 440V): 25 A
• AC-1 Rated Current: 40 A
• Motor Power (AC-3 @ 400V): 11 kW
• Auxiliary Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC)
• Rated Insulation Voltage (Ui): 690 V
• Rated Impulse Withstand Voltage (Uimp): 6 kV

Label Info

• Model: LC1D25 BD
• Ith: 40A
• Standard: IEC/EN 60947-4-1

Application

Ideal for motor starting applications, HVAC systems, switching resistive loads, and general use in industrial automation control circuits.

Country of Origin

Made in France.

CO2 Impact

Choosing this pre-owned component over a new one prevents the emission of approximately 15.0 kg of CO2, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the significance of the 'BD' suffix in the model number?

The 'BD' suffix indicates that the contactor is equipped with a 24V DC low-consumption coil. This type of coil requires less power to actuate and is ideal for direct connection to PLC transistor outputs without the need for an interposing relay.

Yes, the TeSys D series is highly modular. You can easily add front-mount (LADN) or side-mount (LADC) auxiliary contact blocks to expand the number of NO and NC contacts as required by your application.

Absolutely. The low-consumption DC coil is specifically designed for this purpose. It has a low inrush and holding current, making it fully compatible with the current limitations of typical 24V DC digital outputs on PLCs.
