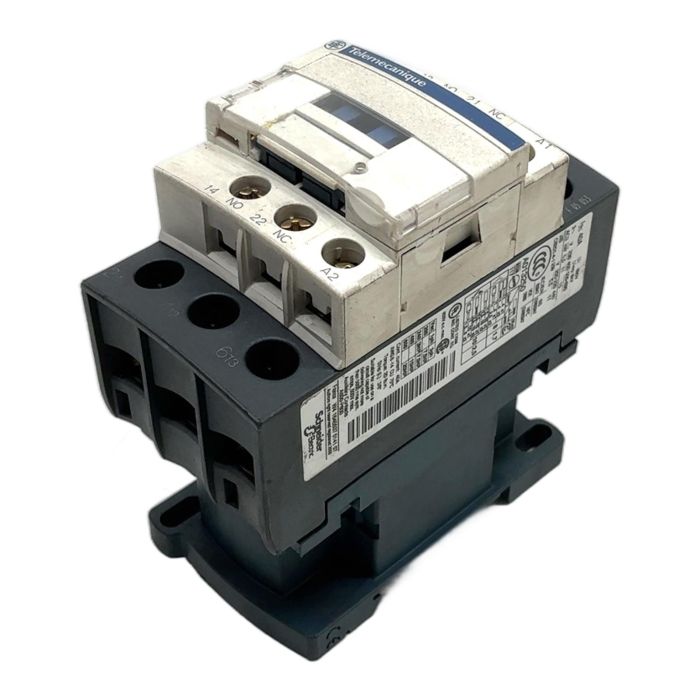

Schneider Electric Contactor 25A 11kW LC1D25

Description

The Schneider Electric LC1D25 is a high-performance 3-pole contactor from the renowned TeSys D series. It is designed for controlling motors and other electrical loads in industrial environments. With a 25A rating for AC-3 applications (motor loads) and a 40A rating for AC-1 applications (resistive loads), this contactor offers robust performance and flexibility. It includes one normally open (NO) and one normally closed (NC) auxiliary contact. Its compact design and proven reliability make it a top choice for automation and control panels.

Specifications

• Manufacturer: Schneider Electric
• Series: TeSys D
• Model: LC1D25
• Poles: 3-Pole
• AC-3 Utilization Category Rating: 25A, 11 kW at 400V
• AC-1 Utilization Category Rating (Ith): 40A
• Maximum Rated Insulation Voltage (Ui): 690V
• Built-in Auxiliary Contacts: 1 NO + 1 NC

Label Info

• Brand: Telemecanique (Schneider Electric)
• Type: LC1D25
• Ith: 40A
• Ui: 690V
• AC3 Power: 5.5kW @ 230V, 11kW @ 400V, 15kW @ 500-690V

Application

This contactor is ideal for a wide range of applications including motor starting, heating and lighting control, and switching of non-inductive loads in industrial machinery, HVAC systems, and commercial buildings.

Country of Origin

This product is made in France.

CO2 Impact

Reusing this component saves approximately 15 kg of CO2 emissions compared to manufacturing a new one. This is equivalent to the emissions from driving a car for 75 kilometers.

Availability

This item is a used, tested product in excellent working condition. Available for immediate dispatch. Please note, the specific coil voltage is not indicated on the unit's label. Order now from PLC2Day for expert support and fast delivery.
