Schneider Electric TeSys D Contactor

Description

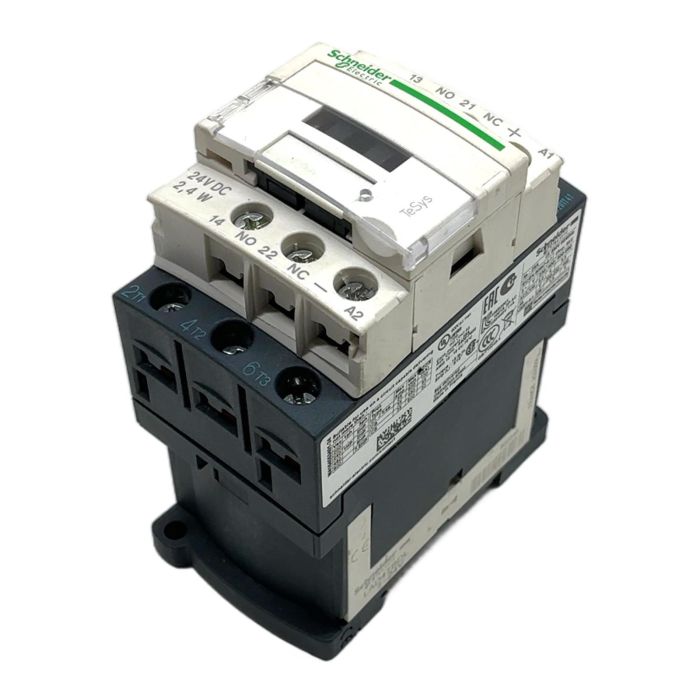

The LC1D09BL from Schneider Electric is a high-performance 3-pole TeSys D contactor designed for motor control and other demanding switching applications. It features a low-consumption 24V DC coil, making it ideal for direct control by PLC systems. With a rating of 9A for AC-3 loads, this contactor provides reliable switching in a compact, DIN-rail mountable package. It includes built-in auxiliary contacts (1NO + 1NC) for feedback and interlocking circuits. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: Schneider Electric
• Series: TeSys D
• Model: LC1D09BL
• Poles: 3-Pole
• Rated Operational Current (AC-3): 9A at 440V
• Coil Voltage: 24V DC (Low Consumption)
• Auxiliary Contacts: 1 Normally Open (NO), 1 Normally Closed (NC)
• Rated Insulation Voltage (Ui): 690V

Label Info

• Ith: 25A
• Uimp: 6kV
• AC-3 Power Rating at 400V: 4 kW
• Standard: IEC/EN 60947-4-1

Application

This contactor is suitable for a wide range of industrial applications, including motor starting, heating and lighting control, and general-purpose switching within automation panels and machinery.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned contactor, you are helping to avoid the emission of 14.4 kg of CO2 associated with the production of a new one. This choice supports a circular economy and reduces industrial waste.

Availability

This item is in stock and ready for immediate dispatch.

FAQ

The 'BL' suffix indicates that the contactor is equipped with a 24V DC low-consumption electronic coil, which has a wide operating voltage range and is suitable for direct control from a PLC output without an interposing relay.

Yes, the TeSys D series is modular. You can add front-mounted (LADN) or side-mounted (LAD8N) auxiliary contact blocks to expand the number of NO and NC contacts as needed for your control circuit.

The LAD4TBDL is a bidirectional peak limiting diode suppressor module. It is integrated to protect the control circuit (like a PLC output) from voltage spikes generated when the contactor coil is de-energized. It is essential for the proper functioning of the low-consumption DC coil.
