Schneider Electric LC1D09BL TeSys D Contactor

Description

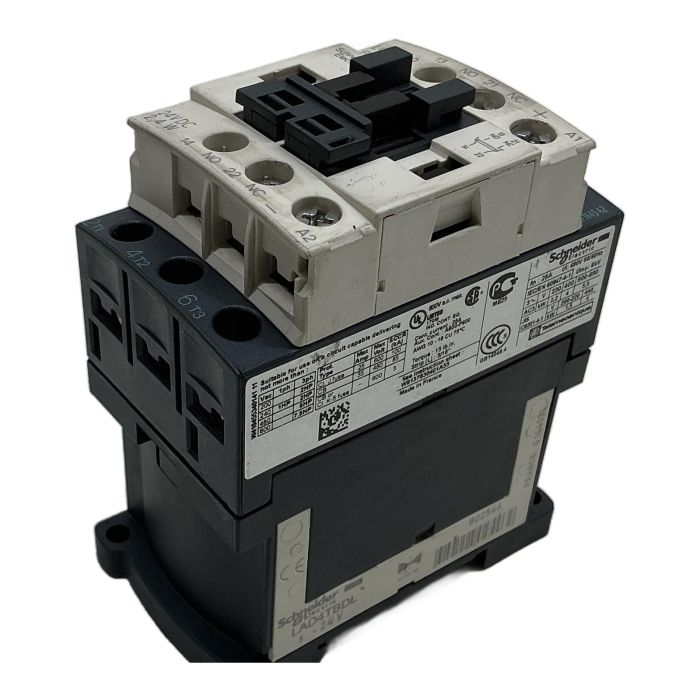

The Schneider Electric LC1D09BL is a high-performance 3-pole contactor from the trusted TeSys D range. It is engineered for motor control and resistive load applications, offering exceptional reliability and a long service life. This model features a 24V DC low consumption coil, making it suitable for direct control from a PLC output. It includes one normally open (NO) and one normally closed (NC) built-in auxiliary contact for signaling and interlocking purposes. This unit also comes equipped with an LAD4TBDL transient voltage surge suppressor module to protect the coil.

Specifications

• Manufacturer: Schneider Electric
• Product Range: TeSys D
• Model: LC1D09BL
• Poles: 3-Pole
• Coil Voltage: 24V DC (Low Consumption)
• Rated Operational Current (AC-3 at 440V): 9A
• Rated Thermal Current (AC-1): 25A
• Motor Power (AC-3 at 400V): 4 kW
• Auxiliary Contacts: 1 NO + 1 NC
• Surge Suppressor Module: LAD4TBDL (included)

Application

Designed for use in industrial automation, HVAC systems, and commercial buildings for switching motors, heaters, lighting, and other electrical loads. Its compact design allows for easy integration into control panels.

Country of Origin

Made in France.

CO2 Impact

Opting for a reconditioned contactor like this one saves approximately 14 kg of CO2 emissions compared to a new product. This positive environmental choice supports a circular economy and reduces industrial waste.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the significance of the 'BL' suffix in the model number LC1D09BL?
The 'BL' suffix indicates that the contactor is equipped with a low consumption 24V DC coil. This type of coil requires less power to operate, making it ideal for direct control by sensitive outputs like those from a PLC.

What is the purpose of the attached LAD4TBDL module?
The LAD4TBDL is a Transil type surge suppressor module. It is designed to clip onto the contactor and protect the DC control circuit from voltage spikes and transients that can occur when the coil is de-energized, thereby protecting sensitive control electronics.

Can this 3-pole contactor be used for a single-phase motor?
Yes, a 3-pole contactor can be used to control a single-phase motor. For proper and safe operation, you should wire the incoming power and motor leads according to the manufacturer's recommendations, typically by looping the live phase through two of the poles to balance the load.
