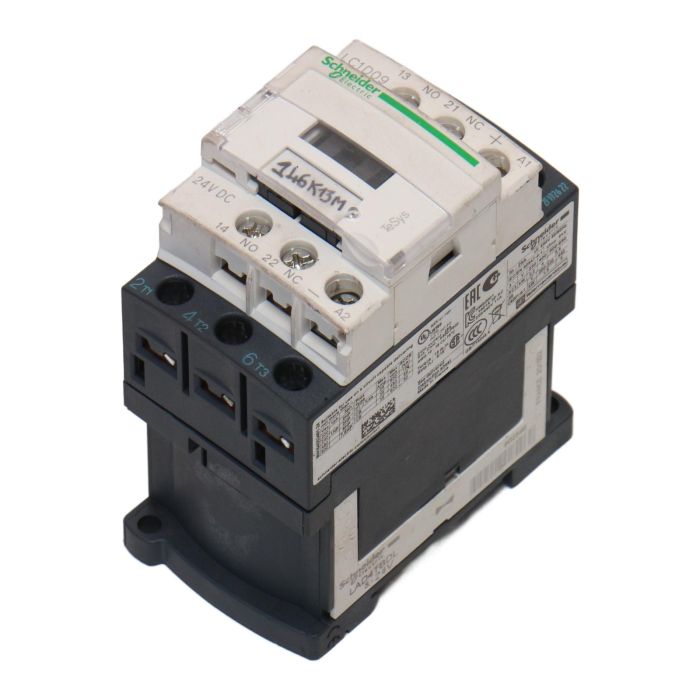

LC1D09BD + LADATBDL Contactor and Bi-Directional Limiting Diode

Product Description

LC1D09BD is a Deca 3P Contactor with a 24V DC coil suitable for electrical power transmission applications. LADATBDL is a bi-directional limiting diode designed to work in conjunction with the contactor.

Product Specifications

Brand: Schneider Electric

SKU: 2508080019

Price: $9.95

Category: Electrical Power Transmission

Official Manufacturer website: Schneider Electric

GTIN-13: 3389110353075 (LC1D09BD) + 3389118025462 (LADATBDL)

Current Date: 27/08/2025

Current: 25A, Aux. Cont.: A600-P600, AWG 10-18 CU 75°C, Torque: 15 lb.in., Strip (L): 5/16' SP

Max Voltage: 600V a.c. max, UL LISTED, 170M, IND. CONT. EQ., Cont. current: 25A

Product Label Info

Model Code / Product Markings: LC1D09BD + LADATBDL

LC1D09BD: W4164553401-24

LADATBDL: 5-24V, 802546, FRANCE 2G1922

Application

Suitable for electrical power transmission systems and equipment.

Country of Origin

This product is manufactured in France.

Method of Application

Follow the provided instruction sheet for installation and usage guidelines.

Safety Instructions

Handle the product with care, ensure proper grounding, and refer to safety guidelines before installation.

Availability

Order now from PLC2Day, items in stock and ready for fast worldwide delivery.

Need urgent and express delivery, sourcing, or repairs? Contact us now.

Documentation

• Official datasheet or product page Schneider Electric

Resources

Additional resources and manuals are available upon request. Contact us for details.

Internal & External Links

• All products from Schneider Electric
• Explore similar products in Electrical Power Transmission

Frequently Asked Questions

What is the LC1D09BD + LADATBDL used for?

This part is typically used in electrical power transmission systems, such as motor control applications. It provides reliable switching and protection.

What are the key advantages of LC1D09BD + LADATBDL?

The contactor and limiting diode combination ensures safe and efficient operation of electrical equipment.

Is LC1D09BD + LADATBDL compatible with my system?

If you have a compatible voltage and current rating, the LC1D09BD contactor and LADATBDL diode can integrate into various systems. Contact us for specific compatibility information.

Alternatives to LC1D09BD + LADATBDL

For similar functionality, consider exploring other Schneider Electric contactors and limiting diodes in the product range.

Can I sell my surplus stock to PLC2DAY?

PLC2DAY accepts surplus stock and offers solutions for inventory clearance or resale. Contact us with details of your surplus items for further assistance.
