Description / SCHNEIDER ELECTRIC LC1D09

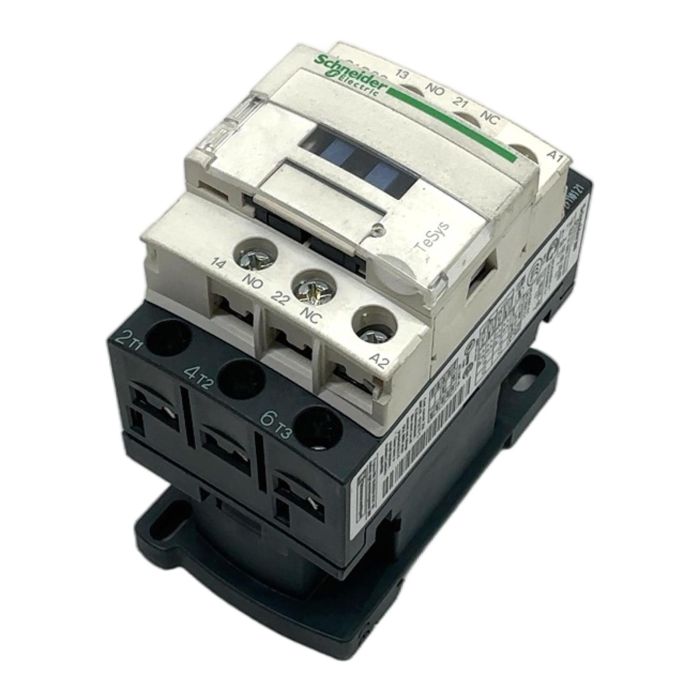

Schneider Electric LC1D09 TeSys D Contactor
Description
The Schneider Electric LC1D09 is a 3-pole contactor from the trusted TeSys D series, designed for high-performance motor control and resistive load switching applications. With a 4kW rating at 400V (AC-3), it offers a compact and reliable solution for industrial automation systems. It features one built-in normally open (NO) and one normally closed (NC) auxiliary contact for control circuit integration.
Specifications
- Manufacturer: Schneider Electric
- Series: TeSys D
- Model: LC1D09
- Number of Poles: 3
- Rated Operational Current (AC-3, 440V): 9 A
- Motor Power (AC-3, 400V): 4 kW
- Conventional Free Air Thermal Current (AC-1): 25 A
- Auxiliary Contacts: 1 NO + 1 NC
- Rated Insulation Voltage (Ui): 690 V
- Rated Impulse Withstand Voltage (Uimp): 6 kV
Label Info
- Part Number: LC1D09
- Standards: IEC/EN 60947-4-1, UL, CSA
- Brand: Telemecanique (a brand of Schneider Electric)
Application
This contactor is ideal for starting and stopping electric motors, as well as for controlling heating circuits, lighting, and other non-inductive loads in industrial environments, infrastructure, and building applications.
Country of Origin
Made in France.
CO2 Impact
By choosing this pre-owned contactor, you are helping to prevent the emission of approximately 14 kg of CO2. This is equivalent to the emissions from driving a car for 70 kilometers, contributing to a more sustainable industrial sector.
Availability
This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.
FAQ
Question? What is the coil voltage for this specific LC1D09 contactor?
Answer
The coil voltage is not explicitly marked on the visible labels of this unit. The LC1D09 series is available with a wide range of AC and DC coil voltages (e.g., 24V DC, 230V AC). It is essential to verify the coil voltage marking, typically found on the side or top of the coil housing, before installation.
Question? Can I add more auxiliary contacts to this TeSys D contactor?
Answer
Yes, the TeSys D series is modular. You can easily add front-mounted or side-mounted auxiliary contact blocks (like the LADN series) to increase the number of NO (Normally Open) and NC (Normally Closed) contacts as needed for your control circuit.
Question? What is the difference between the AC-1 and AC-3 rating?
Answer
The AC-1 rating (Ith=25A for this model) applies to non-inductive or slightly inductive loads, like resistance heaters. The AC-3 rating (9A for this model) is for squirrel-cage motors and specifies the current it can handle during starting and switching off motors, which is a more demanding application. Always use the AC-3 rating for motor control applications.PLC2DAY is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
Laatst bijgewerkt: Friday, March 13, 2026
More Information
| Item Number | LC1D09 |
|---|---|
| Brands | Schneider Electric |
| HS Code | 8536.49.00 |
| EAN | 0 |
| HS Description | Electromechanical Contactor |
| Manufacturer | Schneider Electric |
| Product Condition | Used |
| Packing Condition | Neutral Packing Packing |
