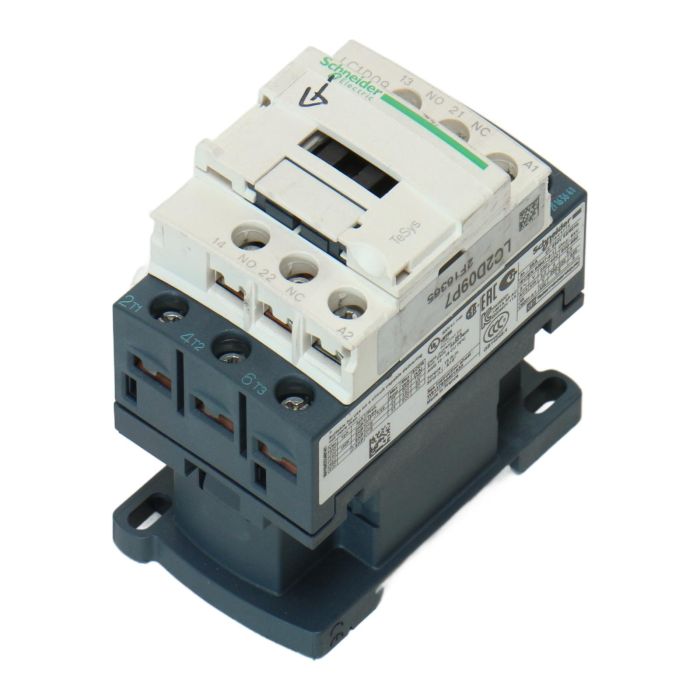

LC1D09, 3-Pole 9 Amp Contactor

Product Description

The LC1D09 is a 3-pole contactor rated at 9 Amp, suitable for various electrical power transmission applications.

Product Specifications

3-POLE, 9 AMP AC-3 (20 AMP AC-1) CONTACTOR RATED AT 2 HP @ 230V AND 5 HP @ 460V 3 PHASE WITH AN AC RATED COIL.

Product Label Info

Model Code / Product Markings: LC1D09

W416455040141, 600Vacmax, Suitable for use on a circuit capable delivering ULUSTED, not more than: Vac 1ph, 200, 240 1HP, 480, 3ph Prot, Max Max SCCR, Amp Volt (KA), CJfuse 25 500 100, 25 480 85, 35 600 50, ZHP Typ, ZMP, CB, SHP, CB, 7.5KP, 170M, IND.CONTE, Cont current: 25A, Aux Cont: A600.00, AWG 10-18 CU 75°C, Torque: 15 bin, Strip (L): 5/16', See Instruction shee, W9137830401A55, Made in France, EAC, HW02001, -1001A 3P AC, Schneider, Electric, th: 25A Ui: 690V 50/60Hz, IEC/EN 60947-4-1 Ump: 6kV, 220/440V 11A 32 V 230 400 500-690, AC3 kW 2,2 4, CCC, GB14048.4, JIS, 5,5, V 200-220 440, C8201-4-1 KW 1,5 4, Telemecanique

Application

Ideal for various electrical power transmission applications.

Country of Origin

This product is manufactured in France.

Method of Application

Refer to the official documentation for installation and integration instructions.

Safety Instructions

Refer to the product manual for safety guidelines.

Availability

Order now from PLC2Day, items in stock and ready for fast worldwide delivery.

Need urgent and express delivery, sourcing, or repairs? Contact us now.

Documentation

• Official datasheet or product page Schneider Electric

Resources

Additional resources and manuals are available upon request. Contact us for details.

Internal & External Links

• All products from Schneider Electric
• Explore similar products in Electrical Power Transmission

Frequently Asked Questions

What is the LC1D09 used for?

This part is typically used in electrical power transmission applications, such as industrial machinery. It offers reliable switching and control capabilities.

What are the key advantages of LC1D09?

The LC1D09 provides efficient and safe operation, suitable for demanding industrial environments.

Is LC1D09 compatible with my system?

If you're using Schneider Electric control systems, especially those compatible with Telemecanique products, then the LC1D09 will likely be compatible. Contact us to verify.

Alternatives to LC1D09

If you're looking for a similar part, consider exploring other Schneider Electric contactors with comparable specifications.
