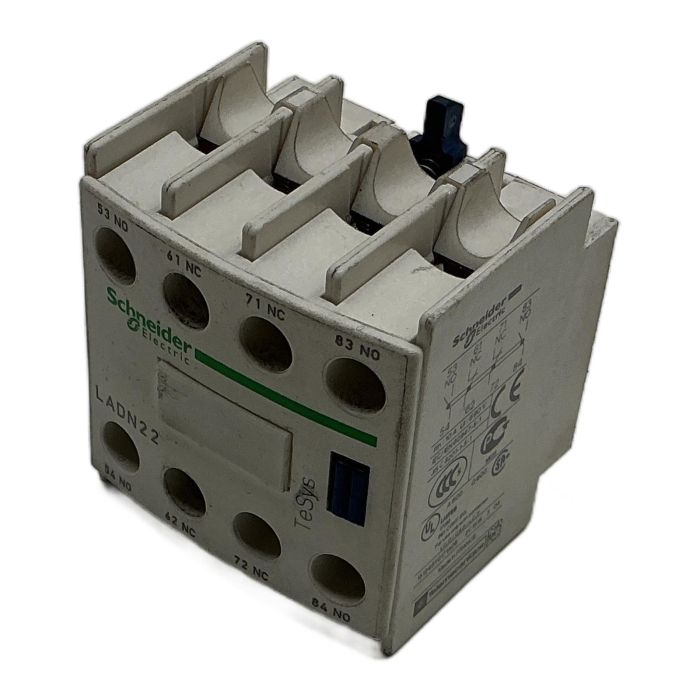

Schneider Electric Auxiliary Contact Block LADN22

Description

The LADN22 is a high-quality auxiliary contact block from Schneider Electric's renowned TeSys D range. This front-mounting block is designed to expand the functionality of TeSys D contactors and control relays by providing additional contacts for signaling and interlocking purposes in control circuits.

Specifications

• Manufacturer: Schneider Electric
• Type: LADN22
• Contact Configuration: 2 Normally Open (NO) + 2 Normally Closed (NC)
• Mounting Style: Front Mount
• Rated Insulation Voltage (Ui): 690 V
• Conventional Free Air Thermal Current (Ith): 10 A
• Terminals: Screw Clamp

Label Info

• Brand: Schneider Electric (Telemecanique)
• Model: LADN22
• Standards: IEC/EN 60947-5-1, UL Listed, CSA Certified

Application

This auxiliary contact block is typically used in industrial automation, motor control panels, and machinery for applications such as status feedback, electrical interlocking, and extending control logic.

Country of Origin

Made in France.

CO2 Impact

Choosing a pre-owned component like this one helps reduce industrial waste and saves approximately 2.0 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the emissions from 240 smartphone charges.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What contactors is the LADN22 compatible with?

Answer:
The LADN22 is designed for front mounting on Schneider Electric TeSys D and TeSys F contactors, as well as CAD control relays. Always verify compatibility with your specific contactor model.

Question?
What are the terminal screw specifications for this block?

Answer:
The LADN22 uses screw clamp terminals. For proper connection, it is recommended to use a Philips No 2 or pozidriv No 2 screwdriver and apply the appropriate torque as specified in the manufacturer's datasheet.

Question?
Can multiple LADN auxiliary blocks be mounted on a single contactor?

Answer:
Yes, depending on the specific TeSys contactor model, it is often possible to mount auxiliary contact blocks on both the front and sides. The LADN22 is a front-mount block. Refer to the contactor's documentation for the maximum number and configuration of auxiliary contacts allowed.
