Schneider Electric Auxiliary Contact Block LADC22

Description

The LADC22 is a high-quality auxiliary contact block from Schneider Electric's TeSys D range. It is designed to be front-mounted on TeSys D contactors (models LC1D, CAD) to expand their control and signaling capabilities. This block provides two normally open and two normally closed contacts, making it ideal for creating electrical interlocks or providing status feedback in motor control circuits.

Specifications

• Manufacturer: Schneider Electric (Telemecanique)
• Type: LADC22
• Contact Configuration: 2 NO + 2 NC
• Mounting: Front
• Conventional Free Air Thermal Current (Ith): 10 A
• Rated Insulation Voltage (Ui): 690 V
• Compatibility: TeSys D and TeSys F contactors
• Terminals: Screw Clamp

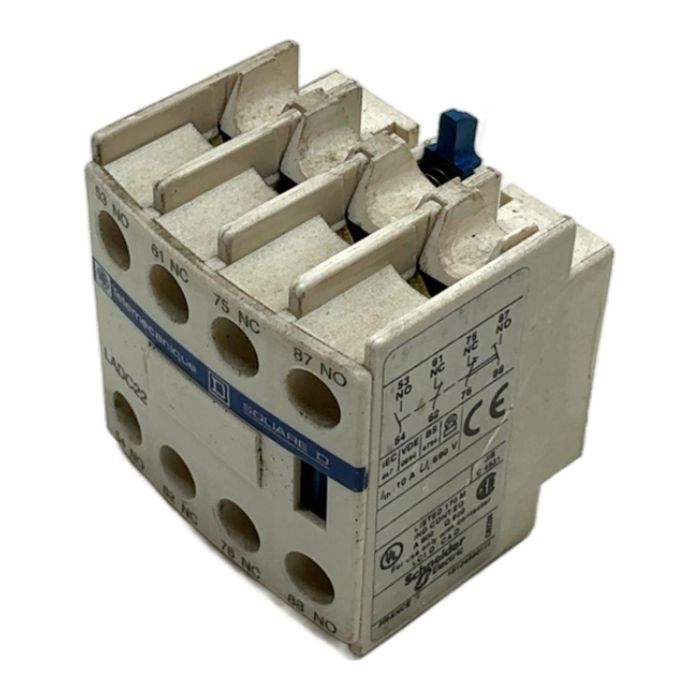

Label Info

• Brand: Telemecanique / Square D / Schneider Electric
• Model: LADC22
• Contacts: 53 NO, 61 NC, 75 NC, 87 NO
• Standards: IEC/VDE, BS, JIS C 4531, UL Listed 170M

Application

This auxiliary contact block is commonly used in industrial automation, motor control centers (MCCs), and any application requiring additional logic or feedback from a contactor. Its robust design ensures reliable performance in demanding environments.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned item, you are helping to avoid the CO2 emissions associated with new production, estimated at 2.0 kg. This is a sustainable choice for your operations.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The LADC22 is rated for high mechanical durability, typically around 30 million operating cycles, ensuring long-term reliability when mounted on a TeSys D contactor.

No, this block is specifically designed for front mounting on TeSys D and TeSys F range contactors, such as models LC1D, LC1F, and CAD relays. It is not compatible with other series like TeSys K.

The screw clamp terminals accept one or two conductors from 1 to 2.5 mm squared (AWG 16-14). The recommended tightening torque is 1.2 Nm to ensure a secure connection.
