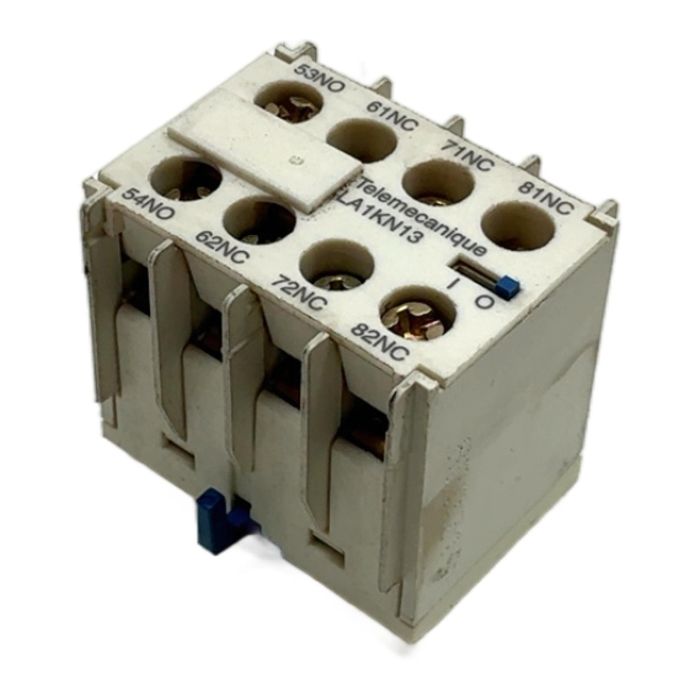

Schneider Electric LA1KN13 Auxiliary Contact Block

Description

The Schneider Electric LA1KN13 is a high-quality auxiliary contact block designed for the TeSys K series of contactors. This unit provides additional signaling capacity with its 1 Normally Open (NO) and 3 Normally Closed (NC) contacts. It mounts easily on the front of compatible contactors, making it a versatile solution for industrial control applications requiring feedback and interlocking functions.

Specifications

• Manufacturer: Schneider Electric
• Type: LA1KN13
• Product Range: TeSys K
• Contact Configuration: 1 NO + 3 NC
• Conventional Free Air Thermal Current (Ith): 10 A
• Rated Insulation Voltage (Ui): 690 V
• Mounting Location: Front
• Compatibility: LC.K, LP.K, CA.K contactors

Label Info

• Brand: Telemecanique (Schneider Electric)
• Model: LA1KN13
• Ith: 10A
• Ui: 690V
• Standards: IEC 947, NFC 63140, VDE 0660, BS 4794

Application

This auxiliary contact block is typically used in industrial automation and control systems. It is essential for applications such as motor control circuits, safety interlocking, and providing status feedback to a PLC or control system.

Country of Origin

This product was manufactured in Indonesia.

CO2 Impact

By purchasing this pre-owned component, you are contributing to a circular economy and avoiding approximately 2.0 kg of CO2 emissions associated with the production of a new unit.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The LA1KN13 is specifically designed for use with the Schneider Electric TeSys K range, including contactor models like LC1K, LP1K, and CA2K.

The terminals use screw clamp connections. They are designed for Phillips No 2 or flat 4.5 mm screwdrivers and accept a tightening torque of 1.3 N.m.

The rated operational current (Ie) is 10A at voltages up to 240V AC-15 and 0.55A at 125V DC-13, making it suitable for a wide range of control circuit loads.
