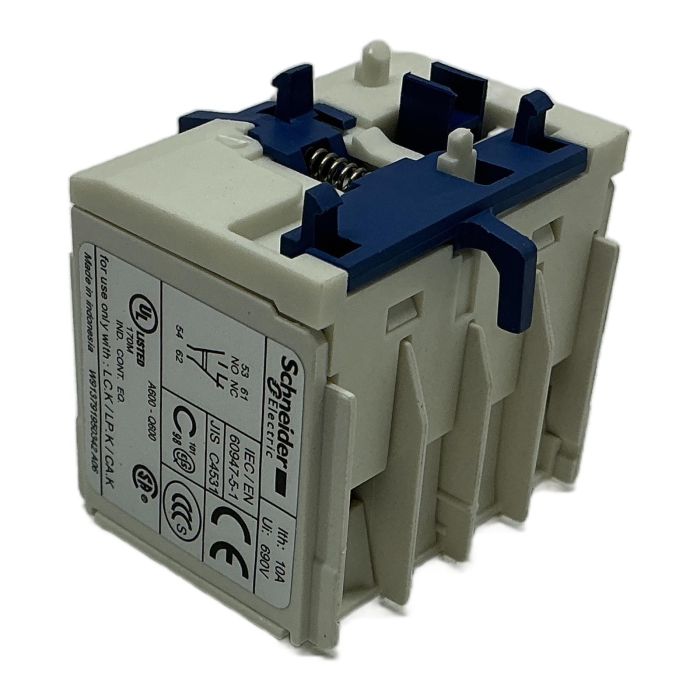

Schneider Electric LA1KN11 Auxiliary Contact Block

Description

The LA1KN11 is a high-quality auxiliary contact block from Schneider Electric's TeSys K range. It provides additional contacts (1 NO + 1 NC) for contactors and control relays. This component is essential for creating interlocking circuits, providing status feedback, and other logic functions in industrial control panels. Its front-mounting design allows for quick and easy installation.

Specifications

• Manufacturer: Schneider Electric
• Part Number: LA1KN11
• Product Range: TeSys K
• Contact Configuration: 1 Normally Open (NO), 1 Normally Closed (NC)
• Mounting Style: Front Mount
• Rated Insulation Voltage (Ui): 690 V conforming to IEC 60947-5-1
• Conventional Free Air Thermal Current (Ith): 10 A
• Terminals: Screw Clamp

Label Info

• Model: LA1KN11
• EAN: 3389110500059
• Standards: IEC/EN 60947-5-1, UL, CSA, CCC

Application

This auxiliary contact block is widely used in motor control centers, HVAC systems, and general automation applications where signaling and control logic are required in conjunction with a main contactor.

Country of Origin

Made in Indonesia.

CO2 Impact

Choosing this reused component saves an estimated 2.0 kg of CO2 compared to a new one, contributing to a more sustainable operation.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The LA1KN11 auxiliary contact block is designed for front mounting on TeSys K contactors and control relays, including models such as LC1K, LP1K, CA2K, CA3K, and CA4K.

The terminals use screw clamp connections. They accept one 1.5 to 4 mm squared solid or stranded cable without a cable end, or two 1.5 to 2.5 mm squared cables. The recommended tightening torque is 1.3 N.m.

1NO stands for one 'Normally Open' contact, which is open when the contactor is de-energized and closes when energized. 1NC stands for one 'Normally Closed' contact, which is closed when the contactor is de-energized and opens when energized. This allows for auxiliary logic and signaling functions.
