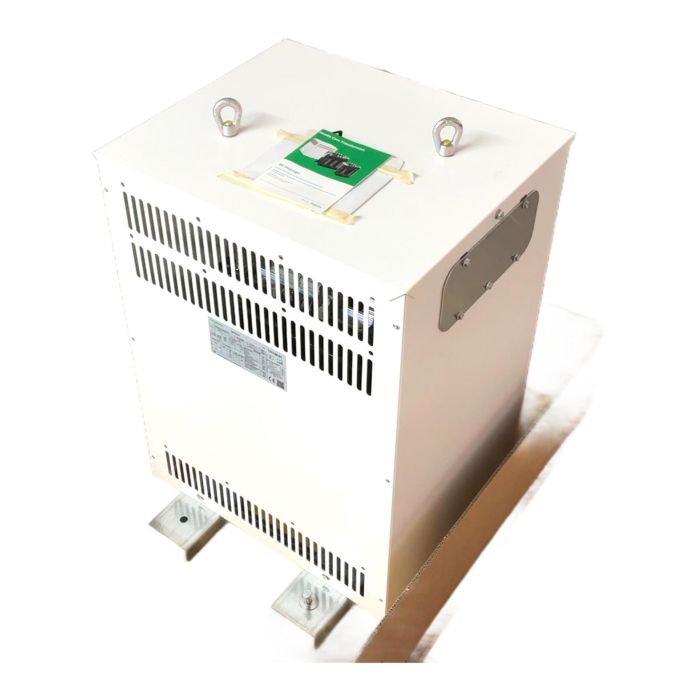

Schneider Electric IMPREGO Single-Phase Transformer 6.3 kVA

Description

This is the Schneider Electric IMPREGO isolating transformer, reference 84204. It is a high-quality single-phase transformer designed for safety and reliability in general industrial and medical applications. With a power rating of 6.3 kVA, it efficiently converts a primary voltage of 400V to a secondary voltage of 230V. Housed in a durable IP21-rated enclosure, it is suitable for indoor installations. This unit is new surplus, manufactured in 2018, and ready for deployment.

Specifications

• Manufacturer: Schneider Electric
• Series: IMPREGO
• Model: 84204
• Power Rating: 6.3 kVA
• Primary Voltage: 400 V (with taps)
• Secondary Voltage: 230 V
• Frequency: 50 Hz
• Phase: Single-Phase
• Protection Class: IP21
• Insulation Class: H
• Total Weight: 65 kg

Label Info

• Ref: 84204
• SN: 131749-01
• DateCode: 2018-6
• Code BCV: IMEN06CBB

Application

Ideal for creating galvanically isolated power supplies in control cabinets, medical facilities (hospitals, clinics), and for any application requiring a safe, separated electrical circuit according to EN 61558-2-4 standards.

Country of Origin

Made in France.

CO2 Impact

Choosing this reused transformer over a new one prevents the emission of approximately 308 kg of CO2, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. It comes in its original, opened box. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the primary application for this IMPREGO 84204 transformer?

This is an isolating transformer designed for safety in general and hospital/medical applications, conforming to the EN 61558-2-4 standard. It's used to create a separated electrical circuit to protect sensitive equipment and personnel.

Can the primary voltage be configured for different inputs?

Yes, the primary winding has tappings. The label shows connections for 230V and 400V on the primary side, offering flexibility for different supply voltages. Always refer to the connection diagram for correct wiring.

What are the lifting and installation requirements for this 65 kg transformer?

The transformer is equipped with two lifting eye bolts on the top for safe handling with appropriate lifting gear. It is designed for indoor floor mounting, and the IP21 rating means it should be installed in a dry location, protected from dripping water.
