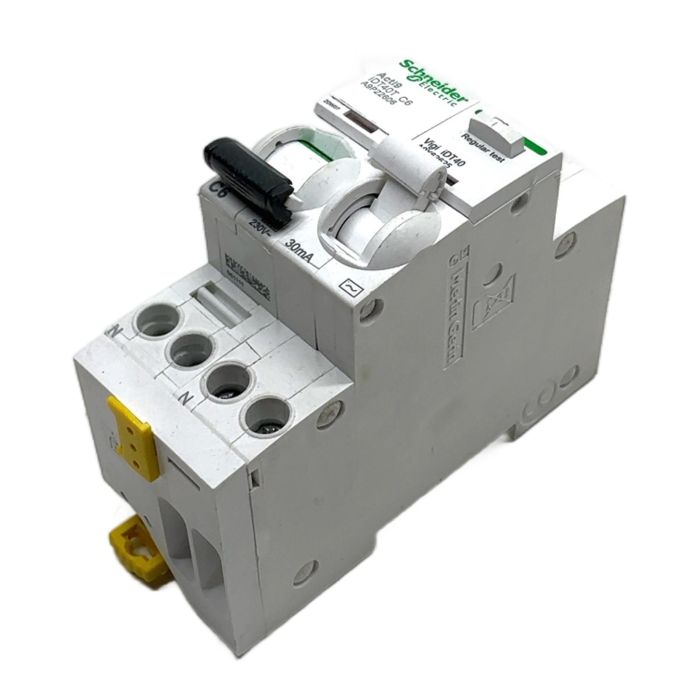

Schneider Electric Acti9 iDT40T C6 RCBO

Description

The Schneider Electric A9D32606 is a high-performance RCBO (Residual Current Circuit Breaker with Overcurrent Protection) from the trusted Acti9 range. This device provides a complete protection solution for single-phase circuits, integrating both overcurrent protection (short-circuit and overload) and earth leakage protection in one compact, DIN-rail mountable unit. It is ideal for residential, commercial, and industrial applications where safety and space-saving are critical.

Specifications

• Manufacturer: Schneider Electric
• Product Range: Acti9
• Model: iDT40T C6
• Part Number: A9D32606
• Poles: 1P+N
• Rated Current: 6 A
• Tripping Curve: C
• Earth Leakage Sensitivity: 30 mA
• Earth-leakage protection class: Type A
• Rated Voltage (Ue): 230V AC, 50/60Hz
• Breaking Capacity: 4500A (Icn) / 6kA (Icu)

Label Info

• Standards: IEC/EN 60898-1, IEC/EN 60947-2
• Uimp: 4kV
• Ui: 400V

Application

This RCBO is designed for final distribution circuits, providing essential protection for socket outlets, lighting circuits, and other single-phase loads where there is a risk of electric shock or fire due to earth faults.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned component, you contribute to a circular economy and help avoid approximately 5.0 kg of CO2 emissions associated with the production of a new unit. This is comparable to saving the emissions of a 25 km car journey.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the difference between an RCBO like the iDT40T and a standard MCB with a separate RCD?

An RCBO (Residual Current Circuit Breaker with Overcurrent protection) like the A9D32606 combines the functions of an MCB (protecting against overloads and short circuits) and an RCD (protecting against earth leakage faults) into a single, compact device. This saves space on the DIN rail and simplifies wiring compared to using two separate components.

The 'C-Curve' rating refers to the breaker's tripping characteristic. It is a general-purpose curve suitable for most applications, including resistive and inductive loads like lighting, sockets, and small motors. It is designed to trip between 5 and 10 times the rated current (6A) on a short circuit, preventing nuisance tripping from small inrush currents.

The Schneider A9D32606 is a Type A device. This means it is sensitive to both sinusoidal AC fault currents (like Type AC) and pulsating DC fault currents. This makes it suitable for protecting circuits with modern electronic equipment, such as computers, inverters, or Class 1 appliances, which can produce non-sinusoidal leakage currents.
