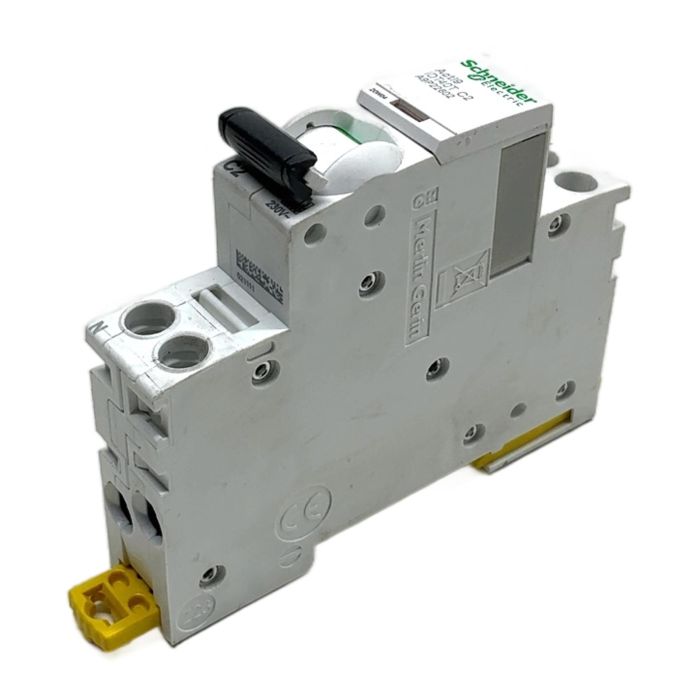

Schneider Electric Acti9 iDPN C 2A Circuit Breaker

Description

The A9P22602 is a high-performance miniature circuit breaker (MCB) from the Schneider Electric Acti9 series. This 1P+N device provides comprehensive protection for single-phase circuits against short circuits and overload currents. With a 2A rating and a C tripping curve, it is ideal for protecting circuits with moderate inrush currents, such as lighting systems and small motors. Its compact design allows for efficient use of space in distribution boards.

Specifications

• Manufacturer: Schneider Electric
• Part Number: A9P22602
• Series: Acti9 iDPN C
• Poles: 1 Pole + Neutral (1P+N)
• Rated Current: 2 A
• Tripping Curve: C
• Rated Operational Voltage (Ue): 230V AC 50/60 Hz
• Breaking Capacity (Icu): 6 kA conforming to IEC/EN 60947-2
• Breaking Capacity (Icn): 4500 A conforming to IEC/EN 60898-1
• Mounting: DIN Rail

Label Info

• Model: iDPN C C2
• EAN: 3606481381293
• Standards: IEC/EN 60898-1, IEC/EN 60947-2

Application

This MCB is designed for final distribution circuits in residential, commercial, and industrial buildings, providing essential protection for equipment and personnel.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned circuit breaker, you help avoid the 5.0 kg of CO2 emissions associated with manufacturing a new one, contributing to a more sustainable industrial sector.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

A 'C' curve MCB is designed to trip between 5 and 10 times the rated current, making it suitable for applications with moderate inrush currents like lighting, motors, and transformers. A 'B' curve trips at 3 to 5 times the rated current and is used for resistive loads with little to no inrush, such as domestic heating circuits.

While it is primarily designed for circuits with a phase (1P) and a neutral (N), it's crucial to follow local electrical codes. The neutral pole is only switched and does not offer overcurrent protection. For protecting two live lines, a proper 2P breaker is the recommended and safer choice.

Icn (rated short-circuit capacity) is defined by the IEC/EN 60898-1 standard for residential and similar installations. Icu (ultimate short-circuit breaking capacity) is defined by the more stringent IEC/EN 60947-2 standard for industrial applications. This breaker's dual rating (4500A Icn, 6kA Icu) ensures it meets requirements for both environments.
