Schneider Electric iC60N D40 3-Pole 40A Circuit Breaker

Description

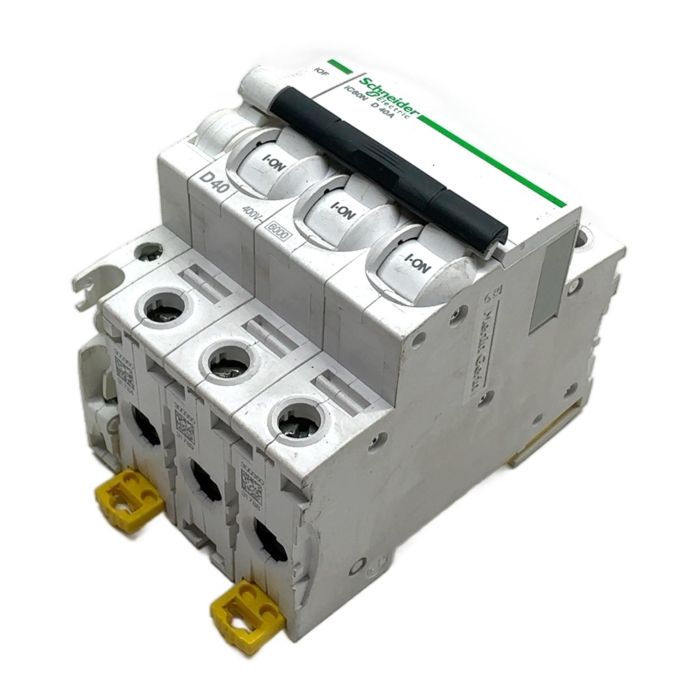

The Schneider Electric iC60N D40 is a robust miniature circuit breaker (MCB) from the market-leading Acti9 range. It provides essential protection for electrical circuits against short circuits and overload currents. This 3-pole model is rated for 40A with a D-curve tripping characteristic, making it ideal for protecting circuits with high inrush currents, like those with motors or transformers. The attached OF auxiliary contact allows for remote monitoring of the breaker's status (open/closed/tripped). This component is designed for DIN rail mounting in industrial and commercial distribution boards.

Specifications

• Manufacturer: Schneider Electric
• Product Series: Acti9 iC60N
• Part Number: A9F75340
• Poles: 3-Pole (3P)
• Rated Current: 40 Amperes
• Tripping Curve: D
• Rated Voltage (AC): 400 V
• Breaking Capacity: 6 kA (acc. to EN/IEC 60898-1)
• Auxiliary Contact: 1x OF (Open/Fault)
• Mounting: DIN Rail

Label Info

• Model: iC60N
• Rating: D40 (D-Curve, 40A)
• Voltage: 400V
• Breaking Capacity: 6000

Application

This MCB is suitable for a wide range of applications in industrial automation, building management, and machine control where protection of three-phase circuits with high inrush loads is required.

Country of Origin

Made in India.

CO2 Impact

Reusing this circuit breaker saves approximately 16 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the emissions from driving a car for 80 kilometers.

Availability

This item is in stock and available for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The D-curve is a thermal-magnetic tripping characteristic designed for circuits with very high inrush currents. It trips between 10 and 20 times the rated current, making it suitable for protecting motors, transformers, and power supplies without nuisance tripping on startup.

Yes, the OF auxiliary contact is a modular accessory for the Acti9 series. It can typically be unclipped from the side of the MCB and replaced with another type of auxiliary or removed if not needed.

VisiTrip is a safety feature on Acti9 breakers that provides a clear visual indication on the front face when the device has tripped due to a fault (overload or short-circuit). This allows for quick identification of the faulty circuit, reducing downtime.
