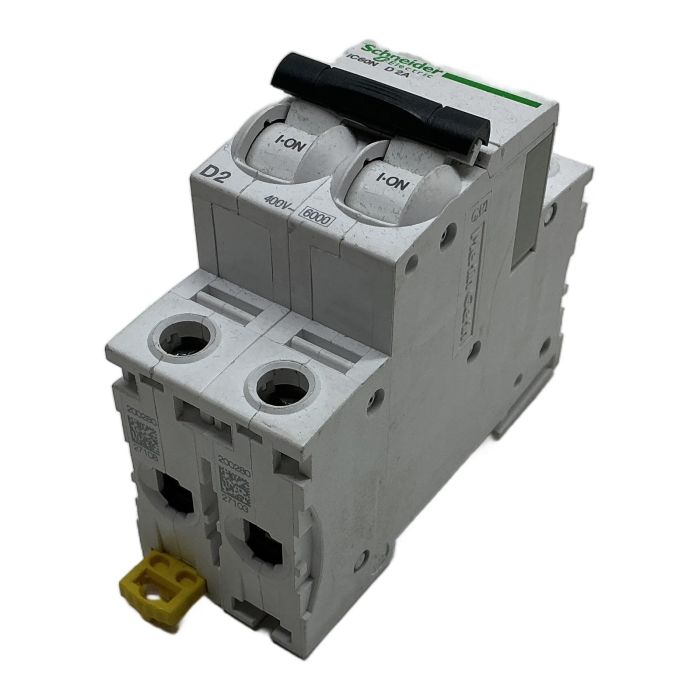

Schneider Electric iC60N D2A Miniature Circuit Breaker

Description

The Schneider Electric A9F05202 is a high-performance miniature circuit breaker (MCB) from the renowned Acti9 series. This 2-pole device provides robust protection for electrical circuits with a rated current of 2A. Its D-curve characteristic makes it perfectly suited for applications with high inrush currents, such as motor starting or transformer energization, preventing nuisance tripping while ensuring safety against overloads and short circuits.

Specifications

• Manufacturer: Schneider Electric
• Series: Acti9 iC60N
• Part Number: A9F05202
• Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 2P
• Rated Current: 2 A
• Tripping Curve: D
• Rated Voltage (Ue): up to 400V AC 50/60Hz
• Breaking Capacity (Icn): 6000A at 400V AC (IEC/EN 60898-1)
• Mounting: DIN Rail

Label Info

• Uimp: 6kV
• Ui: 500V
• Standard: IEC/EN 60898-1, IEC/EN 60947-2

Application

Ideal for use in industrial control panels, commercial buildings, and machinery for protecting circuits that power motors, transformers, and other inductive loads that cause high start-up currents.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned component, you are contributing to a circular economy and helping to avoid approximately 10 kg of CO2 emissions associated with the production of a new unit.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

A D-curve tripping characteristic is designed for very high inrush currents, typically 10 to 20 times the rated current. It is primarily used to protect circuits with transformers, motors, or large capacitor banks where the initial current surge is very high.

This MCB has a breaking capacity (Icn) of 6000A according to the IEC/EN 60898-1 standard for residential/commercial installations. For industrial applications under IEC/EN 60947-2, it has a higher ultimate breaking capacity (Icu) of 50kA at 240/415V.

While primarily designed for AC systems as per the label, many Acti9 MCBs have a DC rating. It is crucial to consult the official Schneider Electric datasheet for the specific DC voltage and breaking capacity ratings for part number A9F05202 before using it in a DC application.
