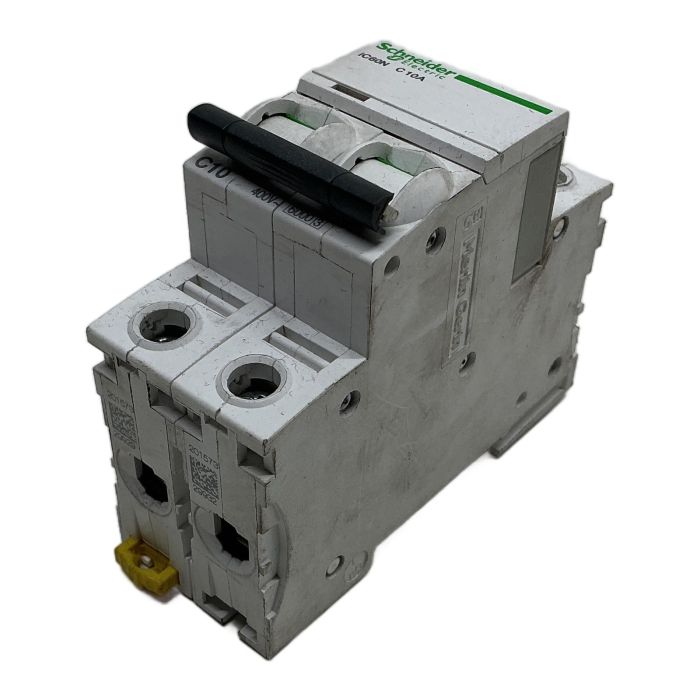

Schneider Electric iC60N C10A Miniature Circuit Breaker

Description

The Schneider Electric A9F77210, part of the Acti 9 iC60N range, is a 2-pole miniature circuit breaker (MCB) with a 10A rating and a C-type tripping curve. It is engineered for superior circuit protection against overloads and short circuits, making it an ideal choice for demanding industrial and commercial environments. This device ensures high reliability and operational safety for your electrical systems.

Specifications

• Manufacturer: Schneider Electric
• Model: iC60N C10A
• Part Number: A9F77210
• Poles: 2-Pole (2P)
• Rated Current: 10 A
• Tripping Curve: C
• Rated Operational Voltage (Ue): 400V AC 50/60Hz
• Rated Breaking Capacity (Icn): 6000 A according to IEC/EN 60898-1
• Rated Insulation Voltage (Ui): 500V AC
• Rated Impulse Withstand Voltage (Uimp): 6 kV

Application

This MCB is suitable for final distribution circuits in industrial buildings, commercial facilities, and residential complexes. It is designed for protection of circuits with resistive and inductive loads with low inrush current.

Country of Origin

Made in France.

CO2 Impact

By choosing this pre-owned component, you are actively contributing to a circular economy. This unit avoids the emission of approximately 10 kg of CO2 compared to a new production, equivalent to the carbon captured by 0.5 trees in a year.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What is the difference between the iC60N and iC60H series?

The main difference is the breaking capacity. The iC60H series typically has a higher breaking capacity (e.g., 10kA) compared to the iC60N series (6kA), making the iC60H suitable for applications where higher fault currents are expected.

What does the 'C' in C10A signify for this circuit breaker?

The 'C' refers to the tripping curve, which defines the breaker's response to overcurrents. A C-curve breaker trips at 5 to 10 times the rated current, making it suitable for general applications including lighting, sockets, and small motors with moderate start-up currents.

Is this breaker suitable for protecting DC circuits?

While primarily designed for AC systems, some iC60N models are certified for DC applications, but their voltage and breaking capacity ratings will differ. It is crucial to consult the official Schneider Electric datasheet for the A9F77210 to verify its suitability and ratings for your specific DC voltage.
