Schneider Electric iC60N 2-Pole 6A Miniature Circuit Breaker

Description

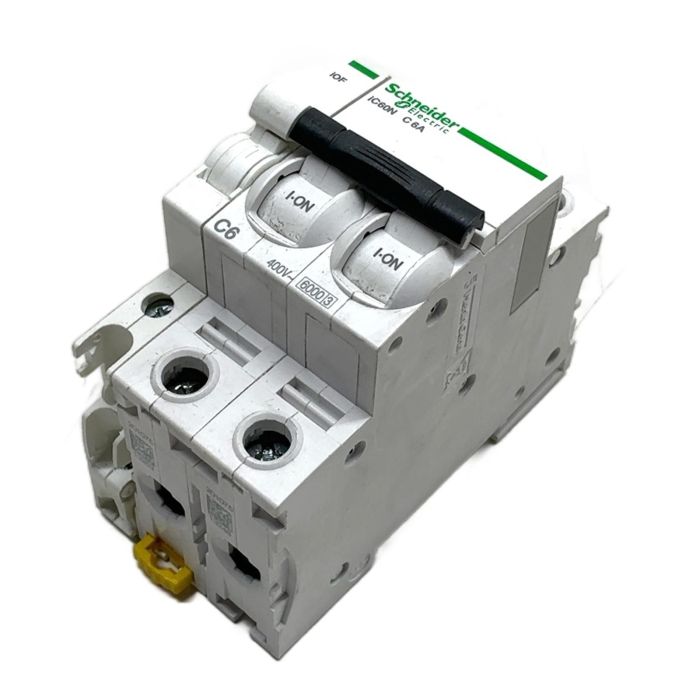

This is a Schneider Electric iC60N miniature circuit breaker (MCB), part number A9F77206. It is designed for reliable protection in electrical distribution boards. This 2-pole model with a 6A rating and C tripping curve is suitable for a wide range of commercial and industrial applications, safeguarding equipment and wiring against overcurrents and short circuits. This unit also includes an attached iOF auxiliary contact for remote status indication.

Specifications

• Manufacturer: Schneider Electric
• Series: Acti9 iC60N
• Part Number: A9F77206
• Poles: 2P
• Rated Current: 6A
• Tripping Curve: C
• Rated Voltage: 400V AC
• Breaking Capacity (Icu): 10 kA conforming to IEC/EN 60947-2
• Frequency: 50/60 Hz
• Auxiliary Contact: Includes iOF (A9A26924)

Label Info

• Model: iC60N C6A
• Voltage: 400V~
• Standard 1: IEC/EN 60947-2 (10kA)
• Standard 2: 6000 3 (IEC 60898-1)

Application

Ideal for use in final distribution panels in commercial buildings, industrial facilities, and infrastructure projects to protect circuits supplying lighting, sockets, and other general loads.

Country of Origin

Made in India.

CO2 Impact

By purchasing this pre-owned circuit breaker, you help avoid the emission of approximately 10 kg of CO2, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 6000A rating is per the IEC 60898-1 standard, typically for residential/commercial use, while the 10kA rating is the ultimate breaking capacity (Icu) per the more stringent industrial standard IEC 60947-2, indicating higher performance.

Yes, the Acti9 system is modular. The iOF auxiliary contact is a clip-on module that can be removed from the side of the MCB or replaced with another compatible Acti9 auxiliary.

A C-curve breaker is for general purpose loads with moderate inrush currents. For most standard motor applications, a D-curve breaker is recommended to prevent nuisance tripping during motor start-up. However, for small motors or fans, a C-curve may be sufficient.
