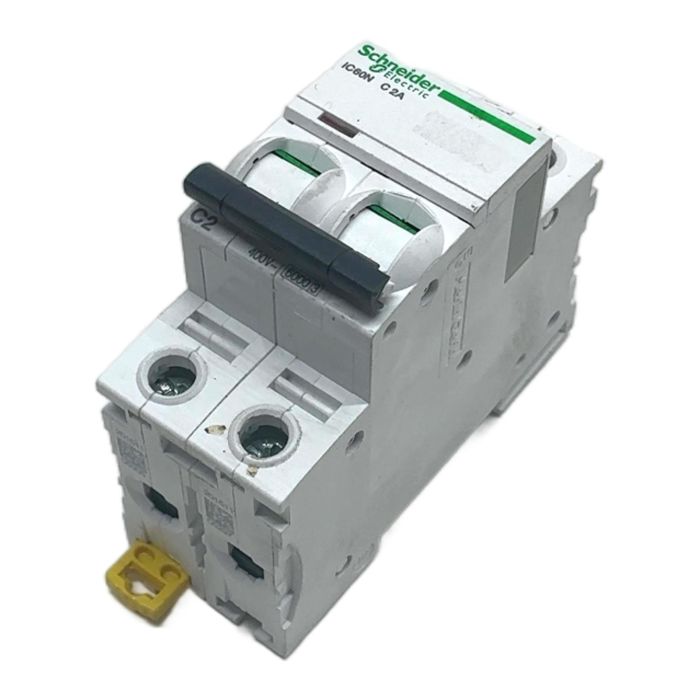

Schneider Electric iC60N Miniature Circuit Breaker

Description

The Schneider Electric A9F74202 is a high-performance 2-pole miniature circuit breaker from the Acti9 iC60N range. It is engineered for final distribution circuit protection in industrial and commercial buildings. With a 2A rating and a C tripping curve, it offers reliable protection against both overloads and short circuits. Its robust design ensures a long service life and enhanced safety features like VisiTrip and VisiSafe provide clear status indication.

Specifications

• Manufacturer: Schneider Electric
• Product Range: Acti9 iC60N
• Part Number: A9F74202
• Poles: 2P
• Rated Current: 2 A
• Tripping Curve: C
• Rated Operational Voltage (Ue): up to 440V AC
• Rated Insulation Voltage (Ui): 500V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Breaking Capacity (Icn): 6000 A at 400V AC according to EN/IEC 60898-1
• Breaking Capacity (Icu): 50 kA at 240V AC according to EN/IEC 60947-2
• Mounting: DIN Rail

Label Info

• IEC/EN 60898-1
• IEC/EN 60947-2
• Tref: 50 deg C
• Pollution Degree: 3

Application

This MCB is ideally suited for protecting circuits with moderate inrush currents, such as lighting systems, control circuits, and general-purpose socket outlets in demanding environments.

Country of Origin

Made in France.

CO2 Impact

Opting for this component helps avoid approximately 10 kg of CO2 emissions compared to a new purchase, supporting sustainable industrial practices.

Availability

In stock and ready for worldwide dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the significance of the 'C' curve for this A9F74202 circuit breaker?
The 'C' tripping curve is a standard curve designed for general purpose applications. It trips instantaneously at 5 to 10 times the rated current (2A in this case). This makes it ideal for protecting circuits with moderate inrush currents, such as lighting, sockets, and small motors.

Can this iC60N breaker be used in a DC circuit?
While the primary ratings are for AC (50/60Hz), many Acti9 iC60N breakers have DC ratings as well. However, you must consult the official Schneider Electric datasheet for the A9F74202 to confirm its specific DC voltage and breaking capacity ratings, as they differ significantly from the AC values.

What is the VisiTrip feature on this Acti9 breaker?
The VisiTrip feature is a red mechanical indicator on the front face of the breaker. It becomes visible only when the breaker has tripped due to a fault (overload or short-circuit), allowing for quick identification of the faulty circuit in a panel. It does not appear if the breaker is manually switched off.
