Schneider Electric iC60N Miniature Circuit Breaker

Description

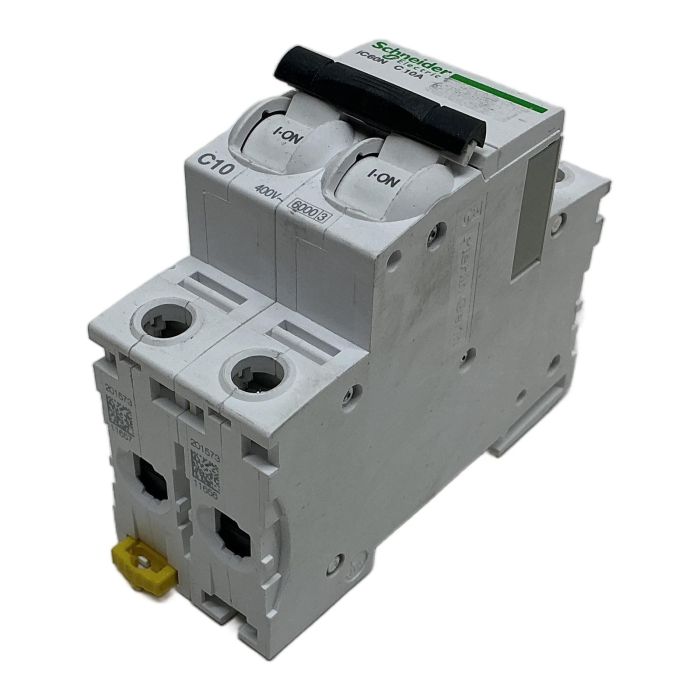

The Schneider Electric A9F04210 is a 2-pole miniature circuit breaker from the industry-leading Acti9 iC60N range. It provides essential protection for electrical installations against both overcurrents and short-circuits. With a 10A rating and C-curve tripping characteristic, it is perfectly suited for a wide variety of general load applications in industrial and commercial buildings. Its robust design ensures high performance and a long service life.

Specifications

• Manufacturer: Schneider Electric
• Part Number: A9F04210
• Series: Acti9 iC60N
• Number of Poles: 2P
• Rated Current: 10 Amperes
• Tripping Curve: C
• Rated Operational Voltage: 400V AC 50/60 Hz
• Breaking Capacity (Icn): 6000 A at 400V AC (acc. to IEC/EN 60898-1)
• Breaking Capacity (Icu): 10 kA at 415V AC (acc. to IEC/EN 60947-2)
• Mounting: DIN Rail

Label Info

• Model: iC60N C10A
• Voltage: 400V~
• Standard: IEC/EN 60898-1, IEC/EN 60947-2

Application

This MCB is ideal for protecting circuits that supply power to lighting systems, standard socket outlets, and other resistive or slightly inductive loads where switching surges are low.

Country of Origin

This product is Made in France.

CO2 Impact

Opting for a reconditioned component like this one prevents the emission of approximately 8.8 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the emissions from driving a car for 44 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

IEC/EN 60898-1 is a standard for circuit breakers for overcurrent protection in household and similar installations (residential/commercial), while IEC/EN 60947-2 is for circuit breakers used in industrial applications, which typically involves more stringent testing for performance and endurance.

While the iC60N range has specific models rated for DC, this particular model A9F04210 is primarily designed and specified for AC applications. For DC circuits, it is crucial to consult the Schneider Electric datasheet to select an appropriate DC-rated breaker.

The 'C' refers to the tripping curve, which defines the current level at which the breaker will trip instantaneously. A C-curve breaker trips between 5 and 10 times the rated current. It is a general-purpose curve. Other common curves include B-curve (3-5 times, for resistive loads) and D-curve (10-14 times, for high inrush currents like motors and transformers).
