Schneider Electric iC60H C16A Miniature Circuit Breaker with Auxiliary

Description

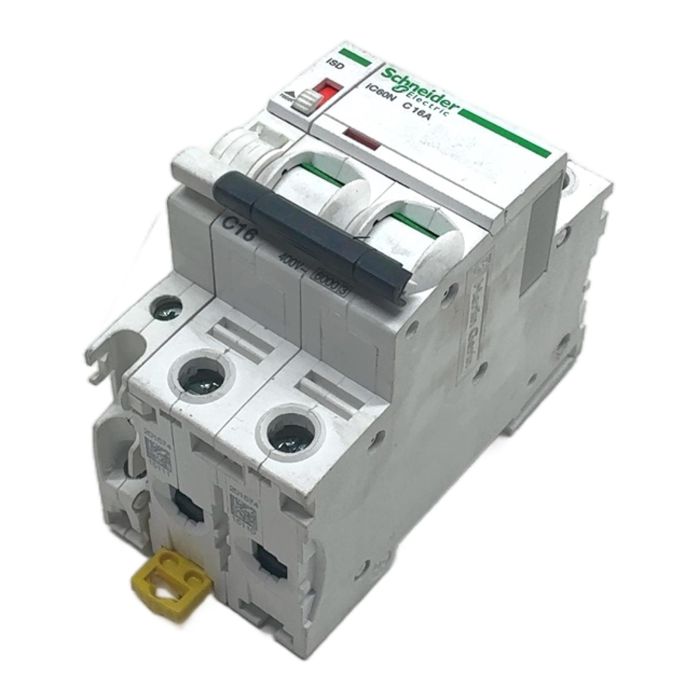

This is an Acti 9 iC60H miniature circuit breaker from Schneider Electric, complete with a factory-fitted or pre-assembled iSD fault signal contact. This 2-pole device is rated for 16A with a C-type tripping characteristic, providing robust protection against overcurrents and short circuits. The 'H' designation indicates a high breaking capacity of 10 kA, making it suitable for industrial and commercial environments where fault currents can be higher. The included iSD contact allows for remote monitoring of fault trips.

Specifications

• Manufacturer: Schneider Electric
• Series: Acti 9
• Model (MCB): iC60H
• Part Number (MCB): A9F77216
• Model (Auxiliary): iSD
• Part Number (Auxiliary): A9A26927
• Rated Current: 16 A
• Number of Poles: 2P
• Tripping Curve: C
• Breaking Capacity: 10 kA at 400V AC
• Rated Voltage: up to 400V AC 50/60 Hz

Label Info

• Schneider Electric iC60H C16A
• IEC/EN 60947-5-1 (for auxiliary contact)
• GB 14048.5

Application

Ideal for final circuit protection in commercial and industrial electrical distribution boards. Suitable for protecting circuits with lighting, standard socket outlets, and other loads that do not exhibit high inrush currents. The high breaking capacity ensures safety in systems with high prospective fault current levels.

Country of Origin

Made in India.

CO2 Impact

By purchasing this reused component, you are contributing to a circular economy and have helped avoid approximately 10.0 kg of CO2 emissions compared to a new purchase. This saving is equivalent to the emissions of driving a car for 50 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the difference between the iC60N and iC60H models?

Answer:
The primary difference is the breaking capacity. The iC60N has a breaking capacity of 6 kA according to IEC 60898-1, while the iC60H model shown here has a higher breaking capacity of 10 kA, making it suitable for installations with higher potential short-circuit currents, typically found in commercial and industrial environments.

What is the function of the attached iSD auxiliary contact?

Answer:
The iSD (Indication Signalisation Defaut) is a fault signal contact. It provides a remote signal to indicate that the circuit breaker has tripped specifically due to a fault, such as an overload or a short circuit. It does not activate when the breaker is manually switched off, allowing for clear differentiation between manual operation and a protective trip.

Can this C-curve breaker be used for circuits with large inrush currents, like motors?

Answer:
A C-curve breaker is designed for general purpose applications, including resistive and inductive loads with low inrush currents (e.g., lighting, sockets). For circuits with high inrush currents, such as motors or transformers, a D-curve or K-curve breaker is typically recommended to prevent nuisance tripping on startup.
