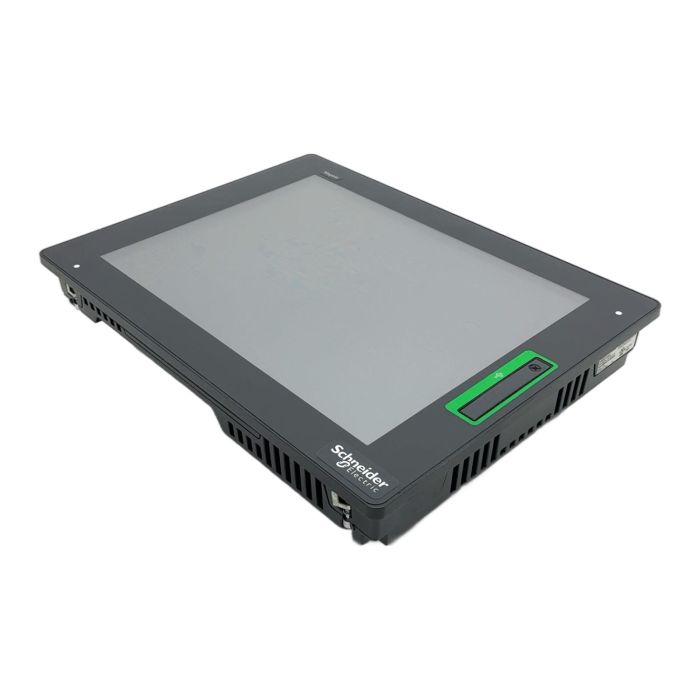

Schneider Electric Magelis GTU Advanced HMI Box

Description

The HMIG3U is a high-performance advanced box designed for the Magelis GTU series of modular HMI panels. It serves as the processing core, offering robust performance and extensive communication capabilities, including dual Ethernet for network segregation and multiple serial ports. This unit is ideal for maintaining or upgrading systems that rely on the flexible and powerful Magelis GTU platform.

Specifications

• Manufacturer: Schneider Electric
• Model: HMIG3U
• Series: Magelis GTU
• Input Voltage: 12-24VDC
• Power Rating: 20W
• Communication Ports: 2x Ethernet, 1x COM1 (RS485), 1x COM2, 2x USB

Label Info

• PV:05 RL:08 SV:4.0
• SN: HRB77309009912
• DOM: 1717 (Year 2017, Week 17)

Application

This advanced box is suitable for complex control and visualization tasks in manufacturing, process control, and infrastructure. Its modular design allows it to be paired with various screen sizes from the Magelis GTU range.

Country of Origin

Made in China.

CO2 Impact

By purchasing this pre-owned component, you are contributing to the circular economy and have helped avoid approximately 100 kg of CO2 emissions associated with the production of a new unit.

Availability

This is an obsolete item, available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

The HMIG3U is programmed using Schneider Electric's Vijeo Designer software. Ensure you have a compatible version to connect and download projects.

The HMIG3U is compatible with the universal displays of the Magelis GTU series. However, you must verify the specific display model (e.g., HMIGTUZ) for firmware and resolution compatibility.

The backup battery for the Real-Time Clock (RTC) is located on the main board. Power down the unit completely before opening the compartment marked 'BATTERY'. Use a compatible replacement battery and observe the correct polarity.
