Schneider Electric GV3L40 Motor Circuit Breaker

Description

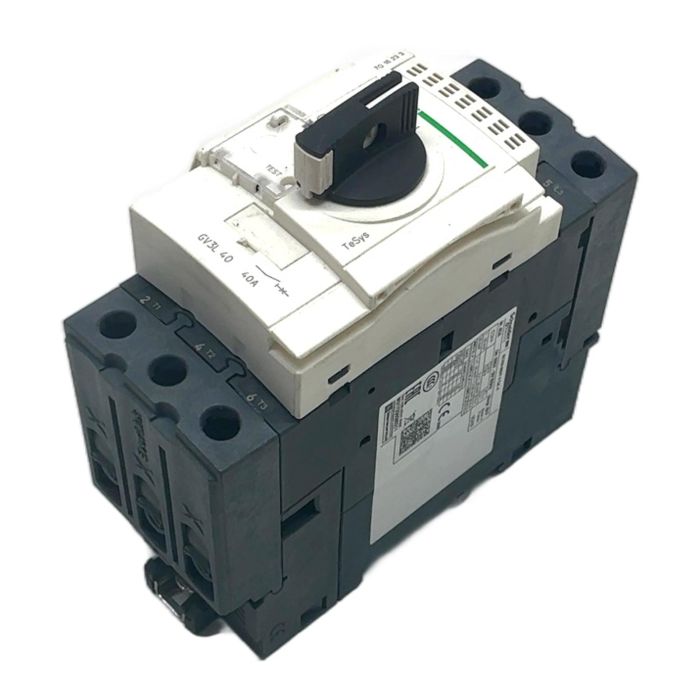

The Schneider Electric GV3L40 is a magnetic motor circuit breaker from the TeSys GV3 range. It provides short-circuit protection for 3-phase motors. With a rated current of 40A and a rotary handle for manual control, it is a reliable component for industrial motor control applications. This unit comes equipped with a GVAN113 side-mounted auxiliary contact block, providing one normally open (NO) and one normally closed (NC) contact for status signaling.

Specifications

• Manufacturer: Schneider Electric
• Product Range: TeSys GV3
• Model: GV3L40
• Rated Operational Current (Ie): 40A
• Rated Operational Voltage (Ue): up to 690V AC
• Protection Type: Magnetic (Short-circuit only)
• Poles: 3-Pole
• Control Type: Rotary Handle
• Auxiliary Contact: GVAN113 (1 NO + 1 NC) included

Label Info

• Breaking Capacity (Icu) at 400/415V: 50 kA
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Standards: IEC/EN 60947-2

Application

The GV3L40 is designed for use in combination with a thermal overload relay and a contactor to create a complete Type 2 coordinated motor starter. It is suitable for protecting motor circuits in various industrial settings, including manufacturing, material handling, and HVAC systems.

Country of Origin

The main unit is made in France, and the auxiliary contact block is made in the Czech Republic.

CO2 Impact

Opting for this pre-owned unit over a new one prevents the emission of approximately 40 kg of CO2, a significant saving that supports sustainable industrial practices.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The GV3L series, like this GV3L40, provides only magnetic (short-circuit) protection. It must be combined with a separate thermal overload relay for complete motor protection. The GV3P series integrates both thermal (overload) and magnetic (short-circuit) protection in a single device.

No, it is not recommended. The GV3L40 is a magnetic-only circuit breaker. For full protection against both short circuits and overloads, it needs to be paired with a thermal overload relay, such as one from the Schneider Electric LRD series, and a contactor like the LC1D series.

The GVAN113 provides additional signaling contacts. It features one Normally Open (NO) and one Normally Closed (NC) contact. These can be used in the control circuit to indicate the status of the circuit breaker (e.g., tripped or off) to a PLC or to operate indicator lights.
