Schneider Electric Motor Protection Circuit Breaker 13-18A GV2ME20

Description

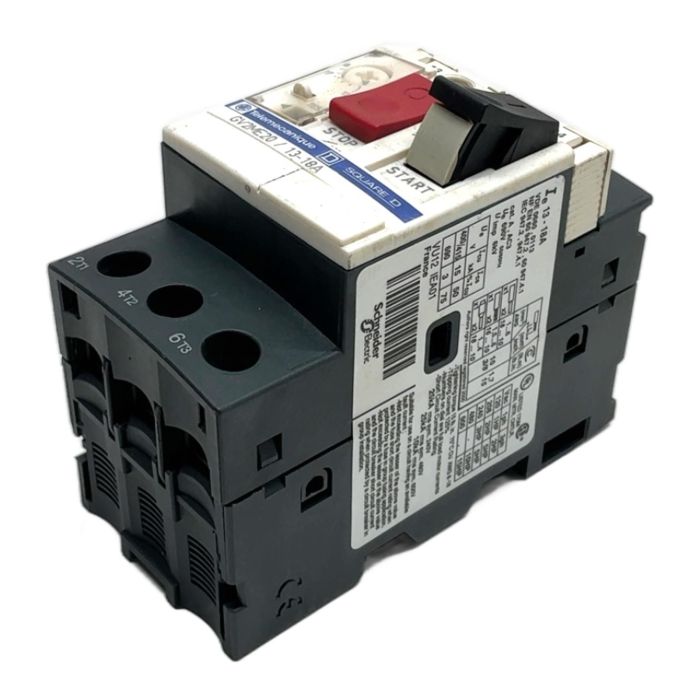

The Schneider Electric GV2ME20 is a high-performance thermal-magnetic motor circuit breaker from the TeSys GV2 series. It provides essential protection for three-phase motors against short-circuits, overload, and phase loss. With its adjustable thermal setting from 13A to 18A and push-button control, it offers a reliable and user-friendly solution for direct manual motor control.

Specifications

• Brand: Schneider Electric
• Model: GV2ME20
• Product Range: TeSys GV2
• Type: Thermal-Magnetic Motor Circuit Breaker
• Current Setting Range: 13 to 18 A
• Poles: 3-Pole (3P)
• Control Type: Push-button (START/STOP)
• Rated Operational Voltage (Ue): 690V AC 50/60 Hz
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Terminals: Screw Clamp Terminals

Label Info

• Model: GV2ME20 / 13-18A
• Standards: IEC/EN 60947-2, IEC/EN 60947-4-1, UL, CSA
• Short Circuit Rating (Icu): 15 kA at 400/415V

Application

This motor circuit breaker is ideal for protecting motors in various industrial applications, including conveyor systems, pumps, fans, and manufacturing machinery. Its compact design allows for easy integration into control panels.

Country of Origin

Made in France.

CO2 Impact

By choosing this pre-owned component, you are saving approximately 10.4 kg of CO2 emissions. This is equivalent to the carbon footprint of driving a car for about 52 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The main difference is the control type. The GV2ME series, like this GV2ME20, uses push-buttons for START/STOP control. The GV2P series uses a rotary knob. Both offer similar thermal-magnetic protection.

Yes, the TeSys GV2 series is modular. You can add auxiliary contact blocks (like the GVAE or GVAN series) to the front or side of the GV2ME20 to provide status signals for your control system.

The thermal protection should be set to the motor's full load ampere (FLA) rating, which can be found on the motor's nameplate. The dial on the front of the GV2ME20 allows you to adjust the setting precisely within its 13-18A range.
