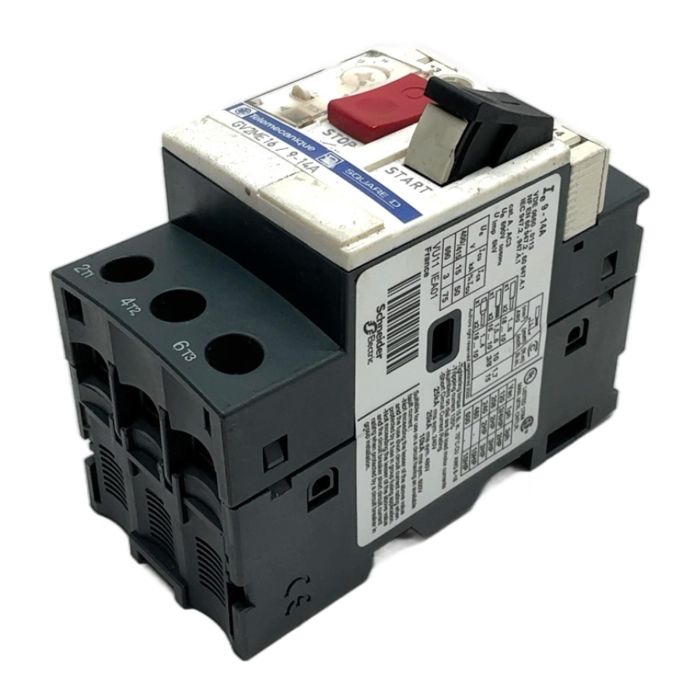

Schneider Electric GV2ME16 Motor Protector

Description

The Schneider Electric GV2ME16 is a high-performance motor protection circuit breaker from the TeSys GV2 series. It provides reliable thermal-magnetic protection for 3-phase motors against overloads, short-circuits, and phase failures. This unit features a manual push-button control for start/stop operations and has an adjustable thermal setting range from 9A to 14A, making it versatile for various motor sizes. Its compact and durable design ensures long service life in demanding industrial environments.

Specifications

• Manufacturer: Schneider Electric
• Model: GV2ME16
• Product Series: TeSys GV2
• Type: Thermal-Magnetic Motor Circuit Breaker
• Poles: 3-Pole
• Thermal Setting Range: 9 A to 14 A
• Rated Operational Voltage (Ue): up to 690V AC
• Rated Impulse Withstand Voltage (Uimp): 6kV
• Control Type: Manual Push-button

Label Info

• Brand: Telemecanique / Square D (Schneider Electric brands)
• Model: GV2ME16 / 9-14A
• Standards: IEC 947, VDE 0660

Application

This motor protection circuit breaker is ideal for direct manual control of small motors in applications such as conveyor systems, pumps, fans, and other industrial machinery where reliable overload and short-circuit protection is essential.

Country of Origin

Made in France.

CO2 Impact

By choosing this pre-owned component, you are contributing to a circular economy and avoiding the emission of approximately 10.4 kg of CO2 associated with the production of a new unit. This saving is comparable to the emissions from driving a car for 52 kilometers.

Availability

This item is a used, tested product in excellent working condition. Available for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the purpose of the thermal adjustment dial on the GV2ME16?

The thermal adjustment dial allows you to set the overload trip current to match the motor's full load ampere (FLA) rating. For the GV2ME16, this can be set anywhere between 9 and 14 Amperes for precise motor protection.

Yes, it can be used for single-phase motors. To do this, you must wire the input and output phases in series through all three poles of the circuit breaker to ensure the thermal protection mechanism functions correctly.

As indicated on the device label, the ultimate breaking capacity (Icu) at 400/415V is 15 kA, providing robust protection against high-level short circuits.
