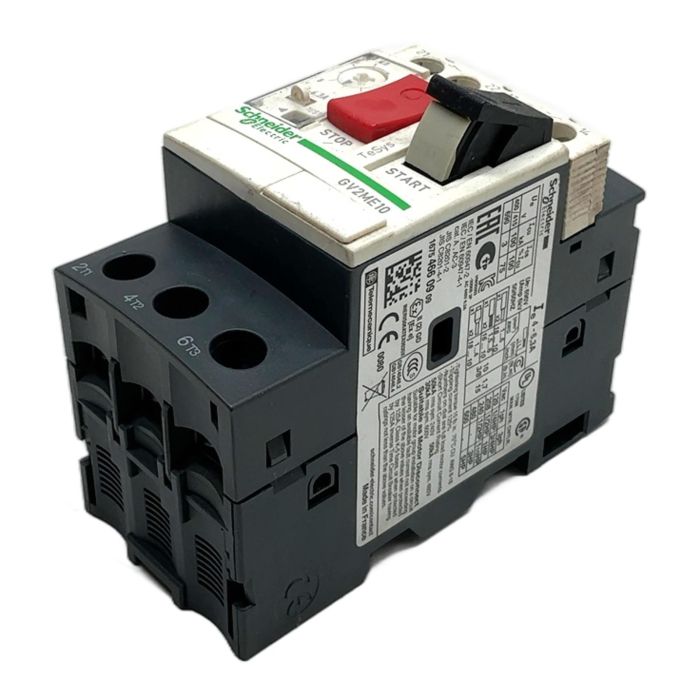

Schneider Electric GV2ME10 Motor Protection Circuit Breaker

Description

The Schneider Electric GV2ME10 is a thermal-magnetic motor circuit breaker from the TeSys product line. It is designed to protect three-phase motors from overloads and short circuits. This compact and reliable device offers an adjustable thermal setting range from 4 to 6.3 Amperes and is suitable for direct motor control via its push-buttons. It is a fundamental component for ensuring the safety and longevity of electric motors in various industrial applications.

Specifications

• Manufacturer: Schneider Electric
• Product Series: TeSys GV2
• Model Number: GV2ME10
• Product Type: Motor Protection Circuit Breaker
• Number of Poles: 3-Pole
• Thermal Protection Range: 4 to 6.3 A
• Rated Operational Voltage (Ue): up to 690V AC
• Control Type: Push-button (START/STOP)
• Trip Technology: Thermal-Magnetic
• Terminals: Screw Clamp

Label Info

• Ir: 4-6.3A
• Uimp: 6kV
• Standards: IEC/EN 60947-2, IEC/EN 60947-4-1

Application

Ideal for motor control and protection in applications such as conveyor systems, pumps, fans, and small machinery. Its robust design makes it suitable for demanding industrial environments.

Country of Origin

Made in France.

CO2 Impact

Choosing this reused Schneider Electric GV2ME10 helps avoid the emission of approximately 12 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the emissions from a 60 km car journey.

Availability

This unit is a used item, tested for functionality, and available for immediate dispatch. The product may show minor signs of previous use but is in excellent working condition. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What is the tripping mechanism of the GV2ME10?

The GV2ME10 uses a thermal-magnetic trip unit. The thermal element protects against motor overloads, while the magnetic element provides instantaneous protection against short circuits.

Can auxiliary contacts be added to this GV2ME10 circuit breaker?

Yes, the TeSys GV2 series is designed to be modular. You can add various auxiliary contact blocks (front or side-mounted) for status signaling and interlocking purposes.

What is the purpose of the 'TEST' function on the dial?

The TEST function allows you to manually verify the mechanical operation of the trip mechanism without applying an actual fault current, ensuring the device is functioning correctly.
