Schneider Electric TeSys GV2 Motor Protection Circuit Breaker

Description

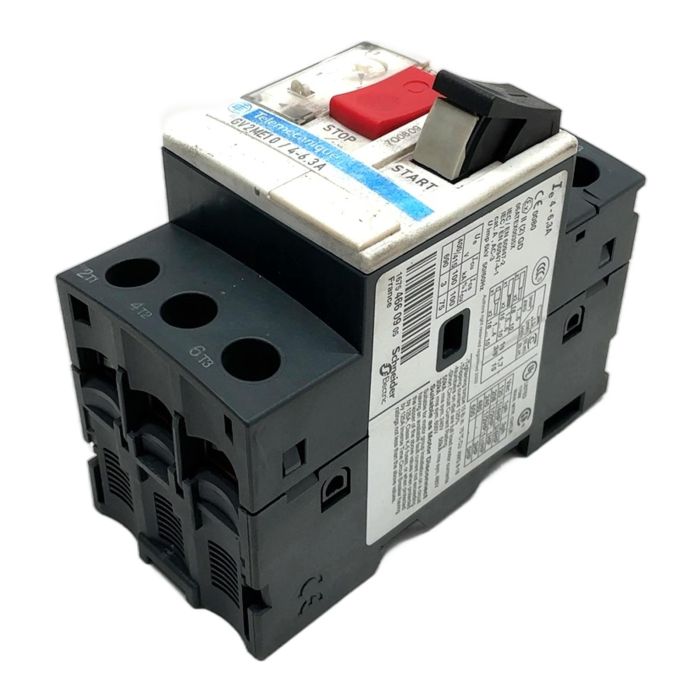

The Schneider Electric GV2ME10 is a high-performance thermal-magnetic motor circuit breaker from the TeSys GV2 series. It provides essential protection for three-phase motors against short-circuits, overloads, and phase failures. With an adjustable thermal setting range from 4 to 6.3A, it offers precise and reliable protection tailored to your motor's specific requirements. Its compact design and push-button operation make it an ideal choice for direct manual motor control and protection in various industrial environments.

Specifications

• Manufacturer: Schneider Electric
• Series: TeSys GV2
• Model: GV2ME10
• Product Type: Motor Protection Circuit Breaker (MPCB)
• Poles: 3-Pole
• Thermal Setting Range: 4 - 6.3 A
• Rated Operational Voltage: 690V AC, 50/60 Hz
• Control Type: Push-button (Start/Stop)
• Breaking Capacity (Icu): 100 kA at 400/415V AC
• Standards: IEC/EN 60947-2, IEC/EN 60947-4-1

Label Info

• Model: GV2ME10
• Ie: 4-6.3A
• Uimp: 6kV
• Approvals: CE, UL, SP, ATEX

Application

This motor protection circuit breaker is suitable for a wide range of applications including conveyor systems, pumps, fans, and other machinery requiring reliable motor protection and manual control.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned component, you are helping to avoid the emission of 10.4 kg of CO2. This is equivalent to the savings of driving a standard car for approximately 52 kilometers.

Availability

This unit is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The GV2ME series uses screw clamp terminals and is typically operated by pushbuttons, while the GV2P series has a rotary handle for operation and often features higher breaking capacities and different terminal options.

Yes, the GV2ME series is designed to be modular. You can add front-mounted (GVAE) or side-mounted (GVAN, GVAED) auxiliary contact blocks for signaling and control purposes.

The dial on the front of the breaker should be set to the motor's full load current (FLA), which is found on the motor's nameplate. The range for this GV2ME10 is 4 to 6.3 Amperes.
