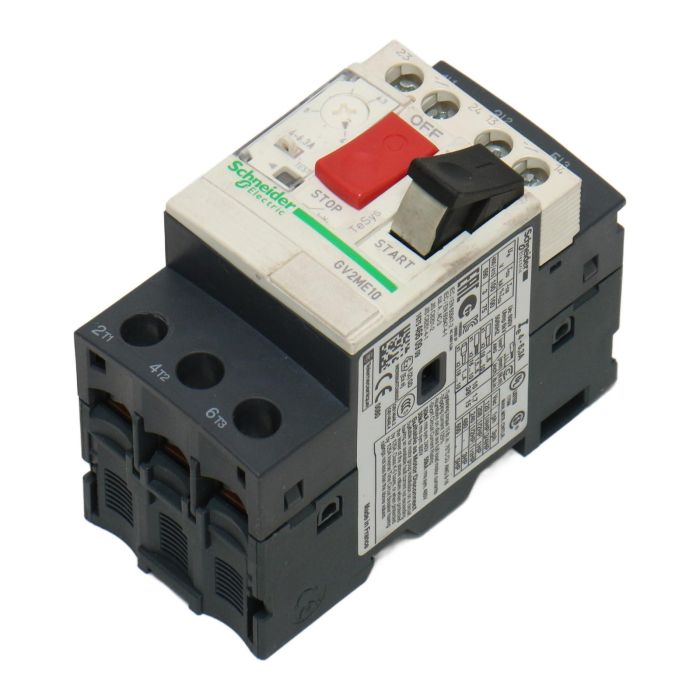

GV2ME10: TeSys GV2ME - Circuit breaker - Thermal/Magnetic - 4-6.3A - Screw terminal

Product Description

TeSys GV2ME10 is a thermal-magnetic circuit breaker designed for engine protection with a current range of 4-6.3A and screw terminals.

Product Specifications

Model Code / Product Markings: GV2ME10

EAN (GTIN-13): 389110343113

Poles: 3P

Network Type: AC

Utilization Category: A

AC-3 Conforming to IEC 60947-4-1

AC-3e Conforming to IEC 60947-4-1

Grid Frequency: 50/60 Hz

Engine Power: 2.2 kW at 400/415 V AC, 3 kW at 500 V AC, 4 kW at 690 V AC

Breaking Capacity: 100 kA Icu at 230/240 V AC, 100 kA Icu at 400/415 V AC, 50 kA Icu at 440/500 V AC, 3 kA Icu at 690 V AC

Ics Service Short Circuit Breaking Capacity: 100% at 230/240 V AC, 100% at 400/415 V AC, 75% at 690 V AC

Product Label Info

Model Code / Product Markings: GV2ME10

Ue: 690V, Icu Ics: 100 kA, KA %Icu: 100, V: 400/415, 690, 3

EAC: ◉, K, HW05003, -2006B 3P, IEC/EN 60947-2 AC 440V 6.3A, Ue: 690V, Uimp 6kV, 50/60HZ, LLC, AWG, inch. Ib.in., 100, Ie 4-6.3A, (mm²) (mm) (N.m), UL LISTED, Vac, 170M, SP®, MAN. MTR. CNTLR., 1ph 3ph, 1...6, 75, x1, x2 18... 10, x1, 1,5...6, x2 16... 10, 1...4, 10 1,7, 120 1/4HP 3/4HP, 208 1/2HP 1HP, 240 1/2HP 11/2HP, 3/8 15, 480, 3HP, x1, x2 18, 10, 600, 5HP, IEC/EN 60947-4-1, cat. A, AC-3, JIS C8201-2, JIS C8201-4-1, 1675 466 09 09, Ex, II (2) GD, [Ex e], INERIS06ATEX0035X, CE 0080, Telemecanique, GB14048.2, GB14048.4, -Tightening torque 15 lb. in. 75°C CU AWG 8-18, -Tripping current 125%, -Numbers on dial are full load motor currents, -Short Circuit Current Rating, 50kA rms sym. 480V, 50kA rms sym. 240V, 30kA rms sym. 600V, Suitable as Motor Disconnect, Suitable for motor group installation on a circuit, having an available fault current not exceeding, the lesser of the above values when protected, by 125A, Class K-5 fuses, or when protected, by 125A Inverse Time Circuit Breaker having, ratings not less than the above values.

Application

TeSys GV2ME10 is commonly used for engine protection in industrial settings.

Country of Origin

This product is manufactured in France.

Method of Application

Follow manufacturer guidelines for proper installation and integration of TeSys GV2ME10.

Safety Instructions

Follow all safety instructions provided by Schneider Electric for the safe use of this product.

Availability

Order now from PLC2Day, items in stock and ready for fast worldwide delivery.

Need urgent and express delivery, sourcing, or repairs? Contact us now.

Documentation

• Official datasheet or product page Schneider Electric

Resources

Additional resources and manuals are available upon request. Contact us for details.

Internal & External Links

• All products from Schneider Electric
• Explore similar products in Electrical Power Transmission

Frequently Asked Questions

What is the GV2ME10 used for?

This part is typically used for engine protection in various industrial applications, ensuring the safety and reliability of motor operations.

What are the key advantages of GV2ME10?

GV2ME10 offers reliable thermal-magnetic protection for motors, with high breaking capacities and precise trip unit technology.

Is GV2ME10 compatible with my system?

If you're utilizing Schneider Electric control systems or similar setups, GV2ME10 will likely be compatible. Contact us for specific compatibility inquiries.

Alternatives to GV2ME10

For similar functionality, consider exploring other TeSys GV2 models or compatible motor protection devices from Schneider Electric.
