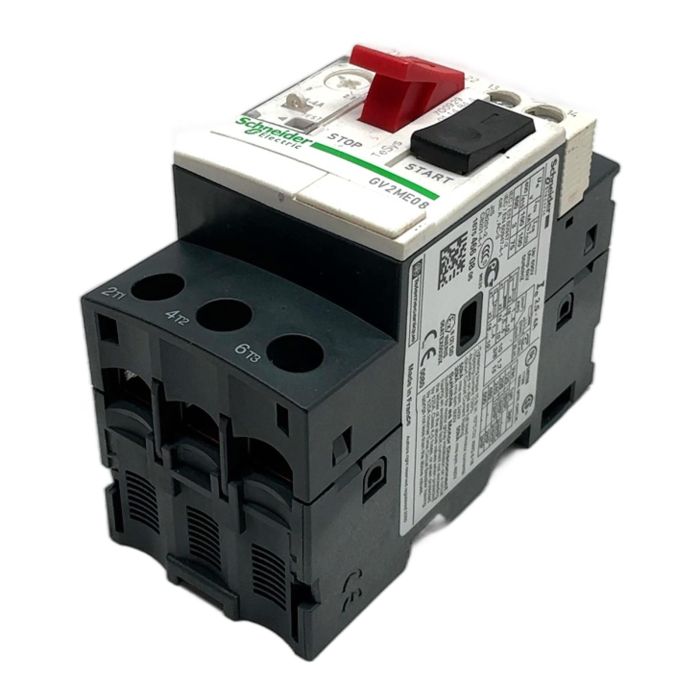

Schneider Electric TeSys GV2ME08 Motor Protection Circuit Breaker

Description

The Schneider Electric GV2ME08 is a high-performance thermal-magnetic motor circuit breaker from the renowned TeSys GV2 range. It provides reliable protection for three-phase motors against overloads and short circuits. Featuring a convenient push-button interface for start/stop control and an adjustable thermal setting range of 2.5 to 4A, this device is ideal for a wide array of industrial motor control applications. Its compact design allows for easy integration into control panels.

Specifications

• Manufacturer: Schneider Electric
• Product Line: TeSys GV2
• Model: GV2ME08
• Type: Thermal-Magnetic Motor Circuit Breaker
• Number of Poles: 3-Pole
• Thermal Protection Adjustment Range: 2.5 to 4 A
• Rated Operational Voltage (Ue): up to 690V AC
• Control Type: Push-button (Start/Stop)
• Terminals: Screw Clamp

Label Info

• Breaking Capacity (Icu) at 400/415V: 100 kA
• Standards: IEC/EN 60947-2, IEC/EN 60947-4-1

Application

This MPCB is commonly used in industrial automation, HVAC systems, pumping stations, and conveyor systems to protect small to medium-sized electric motors.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned component, you are actively participating in the circular economy. You help save approximately 10.4 kg of CO2 emissions compared to manufacturing a new one, which is a significant contribution to environmental sustainability.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The GV2ME series uses pushbutton control (Start/Stop), as seen on this GV2ME08. The GV2P series uses a rotary knob for operation, offering a different user interface and often a higher breaking capacity. Both are part of the TeSys GV2 family.

Yes, the TeSys GV2 series is modular. You can add front-mounted (GVAE) or side-mounted (GVAN) auxiliary contact blocks to provide additional signaling contacts for your control circuit.

The label on this GV2ME08 clearly states that the Icu (Ultimate breaking capacity) is 100 kA at 400/415V, which is very high for its compact size, making it suitable for demanding industrial applications.
