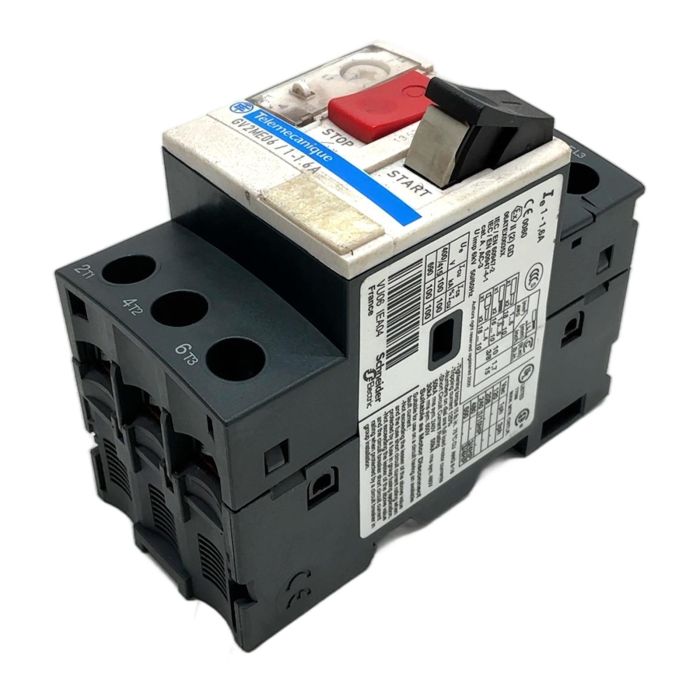

Schneider Electric TeSys GV2ME06 Motor Protection Circuit Breaker

Description

The GV2ME06 is a thermal-magnetic motor circuit breaker from Schneider Electric's TeSys GV2 series. It provides reliable and compact protection for motors with a current range of 1A to 1.6A. This device combines motor control via push-buttons and a toggle switch with protection against short-circuits, overload, and phase loss. It is designed for DIN rail mounting and is a staple in industrial control panels for motor applications.

Specifications

• Manufacturer: Schneider Electric
• Series: TeSys GV2
• Model: GV2ME06
• Product Type: Motor Protection Circuit Breaker (MPCB)
• Thermal Protection Setting Range: 1 to 1.6 A
• Poles: 3-Pole
• Control Type: Push-button and Toggle
• Rated Voltage: Up to 690V AC
• Frequency: 50/60 Hz
• Standards: IEC/EN 60947-2, IEC/EN 60947-4-1, UL 508

Label Info

• Ie: 1-1.6A
• Uimp: 6kV
• Icu at 400/415V: 100 kA
• ATEX Certified: Ex II (2) GD

Application

Ideal for direct manual control and protection of small three-phase AC motors in applications such as conveyor systems, pumps, fans, and other industrial machinery.

Country of Origin

Made in France.

CO2 Impact

Opting for this pre-owned unit saves an estimated 10.4 kg of CO2, which is comparable to the emissions from driving a car for 52 kilometers. Choosing refurbished automation parts is a sustainable choice for your business and the planet.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The GV2ME series, like this GV2ME06, uses push-button control (START/STOP buttons) and a toggle switch. The GV2P series uses a rotary knob for control. Both provide similar thermal-magnetic protection, but the user interface is different.

Yes, the TeSys GV2ME series is designed to be modular. You can add front-mounted (GVAE) or side-mounted (GVAN) auxiliary contact blocks to provide additional signaling contacts for your control circuit.

The Schneider Electric GV2ME series is typically a Class 10 trip device according to IEC 60947-4-1. This means it will trip within 10 seconds under a locked rotor condition (at 7.2 times the set current), which is suitable for most standard motor applications.
