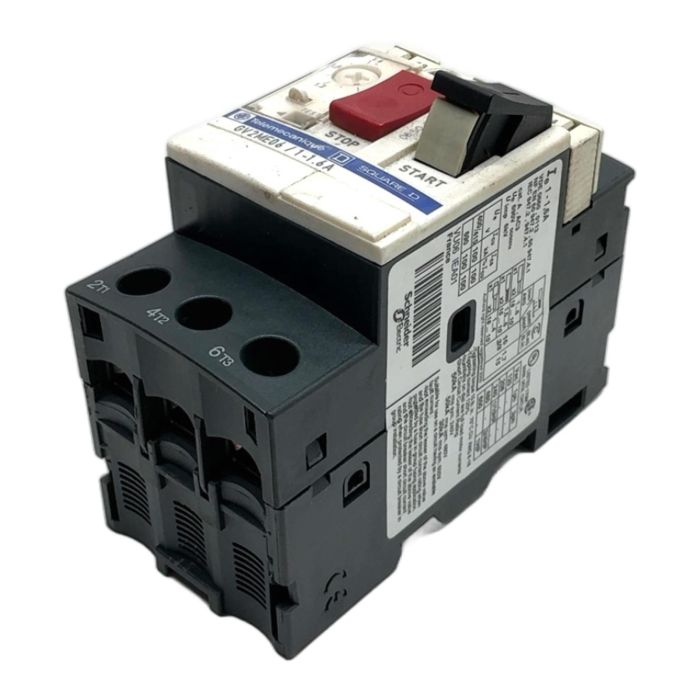

Schneider Electric GV2ME06 Motor Protector

Description

The Schneider Electric GV2ME06 is a robust thermal-magnetic motor circuit breaker from the TeSys GV2 series. It provides comprehensive protection for three-phase motors with a full load current between 1.0 and 1.6 Amperes. This device combines motor protection and manual control in a single compact unit, featuring push-buttons for start and stop operations, and a rotary dial for precise thermal overload setting. It is engineered to protect against short-circuits, overloads, and phase failures.

Specifications

• Manufacturer: Schneider Electric
• Part Number: GV2ME06
• Product Range: TeSys GV2
• Thermal Protection Range: 1.0 to 1.6 A
• Poles: 3-Pole
• Rated Operational Voltage (Ue): 690V AC, 50/60 Hz
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Control Type: Push-button
• Mounting: DIN Rail

Label Info

• Model: GV2ME06 / 1-1.6A
• Standards: IEC/EN 60947-2, IEC/EN 60947-4-1, UL 508, CSA C22.2 No 14
• Breaking Capacity (Icu): 100 kA at 400/415V

Application

This motor protection circuit breaker is ideal for direct manual control and protection of small motors in various industrial applications such as conveyor systems, pumps, fans, and mixers.

Country of Origin

Made in France.

CO2 Impact

By choosing this pre-owned component, you are helping to prevent the emission of approximately 10 kg of CO2. This saving is comparable to the emissions from driving a standard passenger car for 50 kilometers. Your choice supports a circular economy and reduces industrial waste.

Availability

This is a tested, pre-owned item in excellent working condition. Available for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question? What is the purpose of the 'TEST' button on the GV2ME06?

The 'TEST' button allows for a mechanical trip simulation to verify that the trip mechanism of the circuit breaker is functioning correctly without needing an actual overcurrent event.

Yes, the TeSys GV2 series is designed to be modular. You can add front-mounted or side-mounted auxiliary contact blocks (GVAE, GVAN) and undervoltage or shunt trip releases.

The rotary dial should be set to the motor's full load ampere (FLA) rating, which is found on the motor's nameplate. For this model, the range is between 1.0 and 1.6 Amperes.
