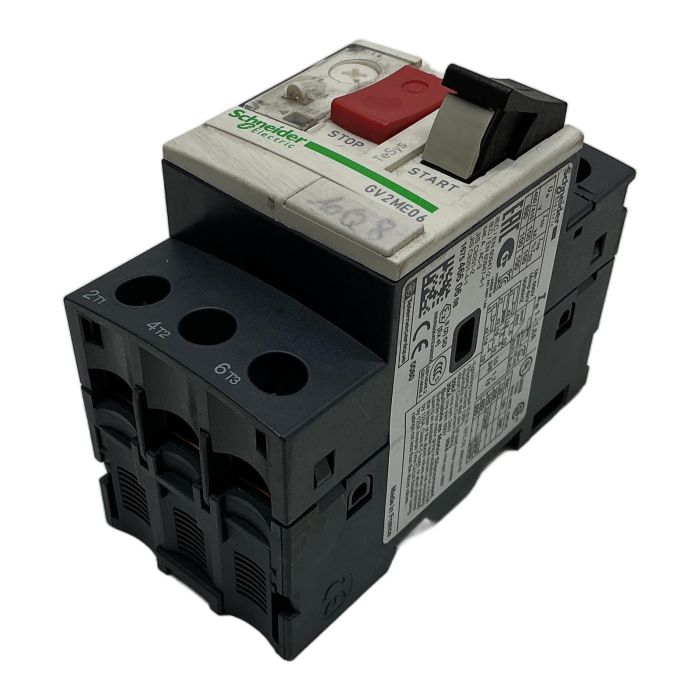

Schneider Electric TeSys GV2ME06 Motor Circuit Breaker

Description

The GV2ME06 from Schneider Electric is a high-performance thermal-magnetic motor circuit breaker, part of the proven TeSys GV2 series. It provides essential protection for 3-phase motors against overloads, short circuits, and phase failures. This compact unit features manual push-button control (START/STOP) and an adjustable thermal setting range from 1 to 1.6 Amps, allowing for precise adaptation to your motor's full-load current.

Specifications

• Manufacturer: Schneider Electric
• Part Number: GV2ME06
• Series: TeSys GV2
• Type: Thermal-Magnetic Motor Circuit Breaker
• Poles: 3-Pole
• Thermal Setting Range: 1 to 1.6 A
• Rated Operational Voltage (Ue): up to 690V AC
• Control Type: Push-button
• Standards: IEC/EN 60947-2, IEC/EN 60947-4-1

Label Info

• Model: GV2ME06
• Current (Ie): 1-1.6A
• Voltage (Ue): 690V
• Impulse Voltage (Uimp): 6kV

Application

Ideal for direct manual control and protection of small motors in various industrial applications, including conveyor systems, pumps, fans, and processing machinery. Its high breaking capacity makes it suitable for environments with high prospective fault currents.

Country of Origin

Made in France.

CO2 Impact

Opting for this refurbished motor circuit breaker instead of a new one prevents the emission of approximately 10.4 kg of CO2. This saving is comparable to the carbon footprint of driving a standard car for 52 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The GV2ME series, like this GV2ME06, uses push-button control for start/stop operations. The GV2P series features a rotary knob for control. Both offer similar thermal-magnetic protection, but the user interface and physical dimensions differ slightly.

Yes, the TeSys GV2ME series is designed to be modular. You can add various auxiliary contact blocks (front or side-mounted), undervoltage trips, or shunt trips to enhance its functionality and integration into a larger control system.

The GV2ME06 has a high breaking capacity, rated at 100 kA at both 400/415V and 690V AC according to IEC/EN 60947-2 standards, making it suitable for demanding industrial environments.
