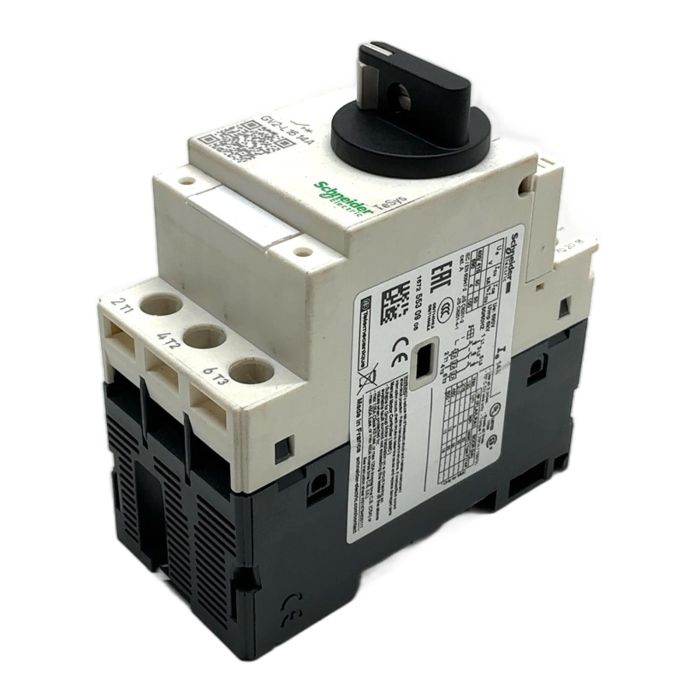

Schneider Electric GV2L16 Motor Circuit Breaker

Description

The Schneider Electric GV2L16 is a high-performance 3-pole thermal-magnetic motor circuit breaker from the trusted TeSys GV2 series. It provides essential protection for three-phase motors against short-circuits, overloads, and phase failures. Featuring a user-friendly rotary handle for manual On/Off control and a thermal setting range of 10-14A, it ensures precise and reliable motor protection in a compact, DIN-rail mountable design.

Specifications

• Manufacturer: Schneider Electric
• Type: GV2L16
• Series: TeSys GV2
• Poles: 3-Pole
• Thermal Adjustment Range: 10-14 A
• Rated Operational Voltage (Ue): up to 690 V AC
• Control Type: Rotary Handle
• Mounting: DIN Rail
• Termination: Screw Clamp Terminals

Label Info

• Model: GV2-L16
• Rated Current (Ie): 14A
• Rated Voltage (Ue): 690V
• Rated Impulse Withstand Voltage (Uimp): 6kV

Application

This motor circuit breaker is ideal for direct manual control and protection of AC motors in industrial applications such as conveyor systems, pumps, fans, and various manufacturing machinery.

Country of Origin

Made in France.

CO2 Impact

Opting for this component instead of a new one prevents the emission of approximately 13.2 kg of CO2, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The main difference lies in the operator type. The GV2L series, like this model, uses a rotary handle. The GV2P series features a push-button operator, which often has a higher breaking capacity and is preferred for certain safety and panel designs.

Yes, the TeSys GV2 range is modular. You can easily add front-mounted (GVAE) or side-mounted (GVAN) auxiliary contact blocks to provide status feedback (ON/OFF/tripped) to your control system.

The thermal protection dial should be set to the motor's full-load ampere (FLA) rating, which is found on the motor's nameplate. Use a small, flat-head screwdriver to adjust the dial to the correct value within the 10-14A range for optimal protection.
