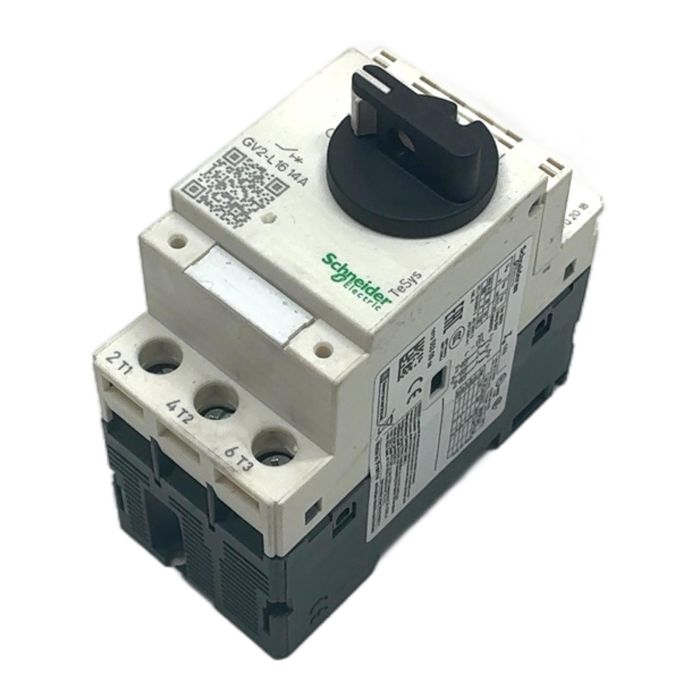

Schneider Electric TeSys GV2 Magnetic Circuit Breaker

Description

The GV2L16 is a high-performance 3-pole magnetic circuit breaker from the Schneider Electric TeSys GV2 series. It is specifically engineered to provide short-circuit protection for electric motors. With a rated current of 16A and a voltage rating up to 690V, it offers robust protection in a compact form factor suitable for DIN rail mounting. The rotary knob provides clear and easy manual control for starting and stopping motors.

Specifications

• Manufacturer: Schneider Electric
• Product Range: TeSys
• Model: GV2L16
• Type: Magnetic Motor Circuit Breaker
• Poles: 3-Pole
• Rated Current (Ith): 16 A
• Rated Operational Voltage (Ue): 690V AC 50/60 Hz
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Terminals: Screw Clamp
• Mounting: 35mm DIN Rail

Label Info

• Standards: IEC/EN 60947-2, IEC/EN 60947-4-1
• Breaking Capacity (Icu) at 400/415V: 50 kA
• UL Listed: 170M

Application

This circuit breaker is ideal for use in industrial control panels for the protection of three-phase AC motors against short circuits. It is commonly found in applications such as conveyor systems, pumps, fans, and other machinery requiring reliable motor control.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned component, you help avoid the 10.4 kg of CO2 emissions associated with the production of a new one, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The GV2L series, like this GV2L16, provides only magnetic (short-circuit) protection and must be used in conjunction with a separate thermal overload relay. The GV2M series combines both thermal (overload) and magnetic (short-circuit) protection in a single device.

Yes, it can be used for single-phase applications. To do so, the three poles must be wired in series according to the manufacturer's instructions to ensure proper operation and protection.

As indicated on the device label, the recommended torque for the screw clamp terminals is 1.7 Nm (or 15 lb.in) to ensure a secure and reliable connection.
