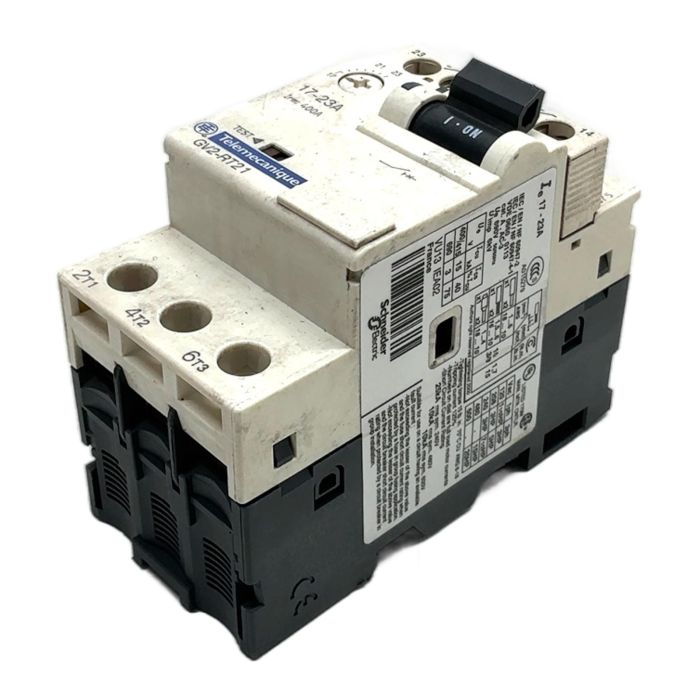

Schneider Electric GV2-RT21 Motor Protection Circuit Breaker

Description

The Schneider Electric GV2-RT21, part of the TeSys GV2 series from Telemecanique, is a manual motor starter and protector. This 3-pole thermal-magnetic circuit breaker offers reliable and adjustable protection for motors, with a setting range from 17A to 23A. It is designed for DIN-rail mounting and features robust EverLink BTR screw clamp terminals for a secure connection. Ideal for preventing damage from overloads and short circuits in various industrial applications.

Specifications

• Manufacturer: Schneider Electric (Telemecanique)
• Model: GV2-RT21
• Product Type: Motor Protection Circuit Breaker
• Poles: 3-Pole
• Thermal Protection Range: 17 to 23 A
• Rated Operational Voltage (Ue): up to 690V AC
• Tripping Technology: Thermal-Magnetic
• Control Type: Rotary Knob
• Mounting: DIN Rail

Label Info

• Model: GV2-RT21
• Current Range (Ie): 17-23A
• Standards: IEC/EN 60947-2, IEC/EN 60947-4-1

Application

This motor circuit breaker is suitable for direct-on-line (DOL) starting and protection of three-phase squirrel cage motors in applications such as conveyors, pumps, fans, and small machinery.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned GV2-RT21, you are contributing to a circular economy and avoiding the production of a new unit. This saves an estimated 13.2 kg of CO2 emissions, which is comparable to the emissions from driving a car for 66 kilometers.

Availability

This is an obsolete item but is available from our stock as a spare part. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What is the difference between the GV2-RT and GV2-ME series?

The GV2-RT series, like this GV2-RT21, uses a rotary knob for operation and features EverLink BTR screw clamp terminals designed for a permanent and reliable connection. The GV2-ME series typically uses push buttons for operation and standard screw clamp terminals.

Can I add auxiliary contacts to this GV2-RT21 circuit breaker?

Yes, the TeSys GV2 series is modular. You can add front-mounted (GVAN) or side-mounted (GVAD, GVAE) auxiliary contact blocks to provide additional signaling contacts for your control circuit. This unit already appears to have built-in auxiliary contacts (1 NO + 1 NC).

What does the 'thermal-magnetic' trip technology mean for this device?

'Thermal-magnetic' refers to the two types of protection it offers. The thermal protection (adjustable 17-23A dial) uses a bimetallic strip to trip on sustained overcurrents (motor overload). The magnetic protection is non-adjustable and trips instantaneously on high short-circuit currents to prevent severe damage.
