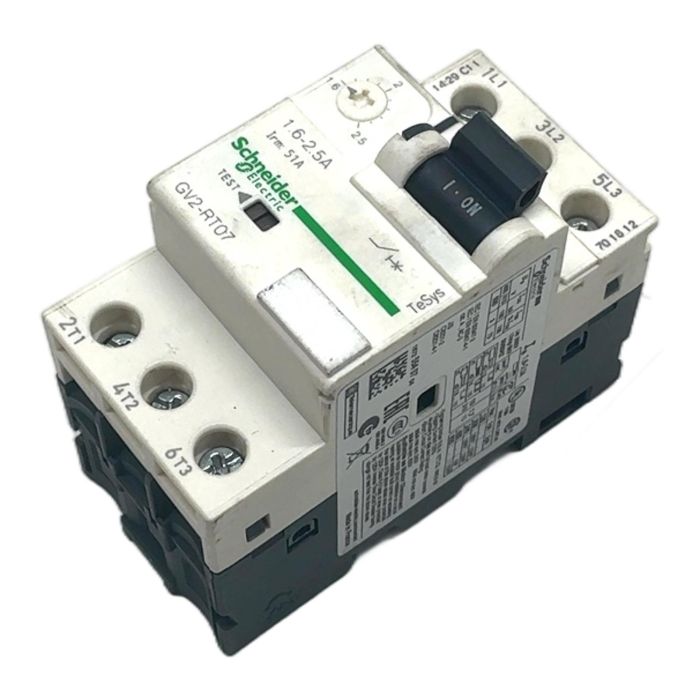

Schneider Electric TeSys Deca Motor Circuit Breaker GV2-RT07

Description

The GV2-RT07 from Schneider Electric is a high-performance thermal-magnetic motor circuit breaker from the TeSys Deca range. It is engineered to provide essential protection for three-phase motors against thermal overloads, short circuits, and phase loss. Featuring a convenient rotary handle for manual switching, this compact device is designed for easy DIN rail mounting in control panels.

Specifications

• Manufacturer: Schneider Electric
• Type Number: GV2-RT07
• Product Range: TeSys Deca
• Function: Motor Protection Circuit Breaker
• Poles: 3-Pole (3P)
• Thermal Protection Range: 1.6A to 2.5A (Adjustable)
• Magnetic Trip Current (Irm): 51A
• Rated Operational Voltage (Ue): up to 690V AC 50/60Hz
• Rated Impulse Withstand Voltage (Uimp): 6kV
• Control Type: Rotary Handle

Label Info

• Brand: Schneider Electric / Telemecanique
• Model: GV2-RT07
• Current Rating (Ie): 1.6-2.5A
• Standards: IEC/EN 60947-2, IEC/EN 60947-4-1

Application

This motor circuit breaker is ideal for protecting small motors in various industrial applications, including conveyor systems, pumps, fans, mixers, and other automated machinery where reliable overload and short-circuit protection is critical.

Country of Origin

Made in France.

CO2 Impact

By choosing this reused industrial part, you are contributing to a circular economy and helping to avoid 10.0 kg of CO2 emissions, which is comparable to the savings from driving a car for 50 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The GV2-RT series uses a rotary handle for operation, while the GV2-ME series uses push-buttons. Both offer similar thermal-magnetic protection but differ in their user interface. The GV2-RT is often preferred for applications where a clear visual ON/OFF state via the handle position is desired.

Yes, it can be used for single-phase motors. For proper protection, you must wire the single-phase supply through all three poles in series to ensure the thermal overload element functions correctly based on the total current drawn. Refer to the official Schneider Electric wiring diagrams for the correct connection scheme.

The magnetic trip current, which provides instantaneous protection against short circuits, is factory-set. For the GV2-RT07, the Irm is 51 A, as indicated on the front of the device. This value is not adjustable by the user.
