Schneider Electric GV2-L32 Motor Circuit Breaker

Description

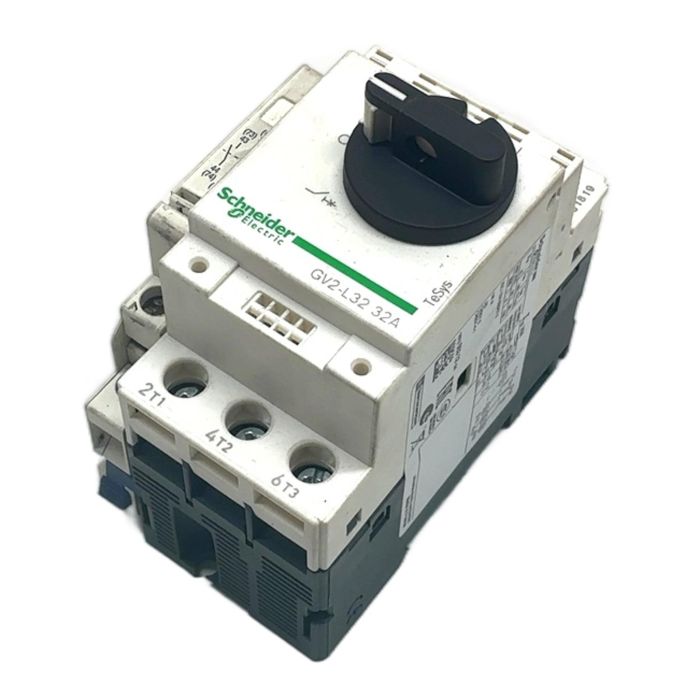

The Schneider Electric GV2-L32 is a high-performance 3-pole magnetic motor circuit breaker from the TeSys GV2 series. It is engineered to provide reliable short-circuit protection for electric motors. This unit features a fixed magnetic trip of 32A and is operated via a robust rotary handle. This item comes complete with a pre-mounted GVAN11 auxiliary contact block (1NO + 1NC) for signaling and control purposes. Ideal for industrial applications requiring dependable motor protection.

Specifications

• Manufacturer: Schneider Electric
• Type: GV2-L32
• Product Range: TeSys GV2
• Function: Magnetic Motor Circuit Breaker
• Number of Poles: 3
• Magnetic Trip Current: 32 A
• Rated Voltage: up to 690V AC
• Auxiliary Contacts: GVAN11 (1 Normally Open, 1 Normally Closed)
• Control Type: Rotary Handle

Label Info

• Main Unit: GV2-L32, Made in France
• Auxiliary Unit: GVAN11, Made in Czech Republic
• Standards: IEC/EN 60947-2, IEC/EN 60947-5-1

Application

This motor circuit breaker is primarily used in industrial control panels for the protection of AC motors against short circuits. It is commonly used in combination with a separate thermal overload relay to provide complete motor protection for applications such as conveyors, pumps, fans, and other machinery.

Country of Origin

The main component (GV2-L32) is manufactured in France.

CO2 Impact

By choosing this pre-owned component, you are helping to avoid the emission of approximately 10.4 kg of CO2. This saving is equivalent to the emissions from driving an average car for 52 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What is the difference between a GV2-L and a GV2-M motor circuit breaker?

Answer:
The GV2-L series, like this GV2-L32, provides magnetic-only (short-circuit) protection. It must be used with a separate thermal overload relay for complete motor protection. The GV2-M series provides combined magnetic and thermal (overload) protection in a single unit.

Answer:
The GVAN11 is an auxiliary contact that mounts on the side of the circuit breaker. The '11' signifies it provides one Normally Open (NO) and one Normally Closed (NC) contact. These contacts can be used for remote signaling, interlocking, or control logic, for example, to indicate the breaker's status (ON/OFF) to a PLC or illuminate a pilot light.

Answer:
No, the GV2-L series has a fixed, non-adjustable magnetic trip setting. The value is factory-set to the nominal current specified in the model number, which is 32 Amperes for this unit.
