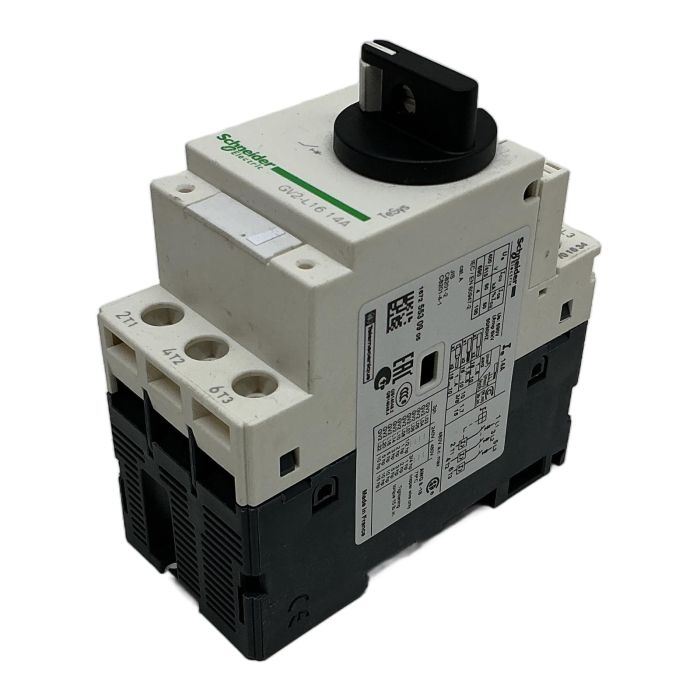

Schneider Electric TeSys GV2-L16 Magnetic Motor Circuit Breaker

Description

The Schneider Electric GV2-L16 is a high-performance magnetic motor circuit breaker from the TeSys product family. This 3-pole device is engineered to provide essential short-circuit protection for motors up to 690V AC. With a fixed magnetic trip of 16A, it ensures reliable and precise protection in industrial environments. Its compact design allows for easy installation on a DIN rail, and it can be combined with other TeSys components like thermal overload relays and auxiliary contacts for a complete motor starter solution.

Specifications

• Manufacturer: Schneider Electric
• Type: TeSys GV2-L16
• Rated Current: 16 A
• Number of Poles: 3-Pole
• Rated Voltage: Up to 690V AC
• Protection Type: Magnetic (Short-Circuit)
• Control Type: Rotary Knob
• Mounting: DIN Rail
• Terminals: Screw Clamp

Label Info

• Model: GV2-L16
• Brand: Schneider Electric, TeSys
• Country of Origin: Made in France

Application

This circuit breaker is ideal for protecting 3-phase AC motors against short-circuits. It is commonly used in industrial automation, material handling, HVAC systems, and pumping applications, typically in conjunction with a separate thermal overload relay for complete motor protection.

Country of Origin

This product is proudly manufactured in France by Schneider Electric.

CO2 Impact

Choosing this pre-owned component saves approximately 10.4 kg of CO2 compared to a new one, contributing to a more sustainable industrial operation.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What is the difference between a GV2-L and a GV2-ME circuit breaker?

The GV2-L series, like this GV2-L16, provides only magnetic protection against short circuits. The GV2-ME series provides both thermal (overload) and magnetic (short-circuit) protection in a single unit. The GV2-L is typically used with a separate thermal overload relay.

Can I add auxiliary contacts to this GV2-L16 breaker?

Yes, the TeSys GV2 range is modular. You can add various auxiliary contact blocks (like GVAE or GVAN series) to the front or side of the breaker for status signaling and interlocking purposes.

What is the breaking capacity (Icu) of this device?

The label indicates the Icu varies with voltage. For example, at 400/415V, the Icu is 50 kA, and at 690V, it is 4 kA, according to the IEC/EN 60947-2 standard shown on the device.
