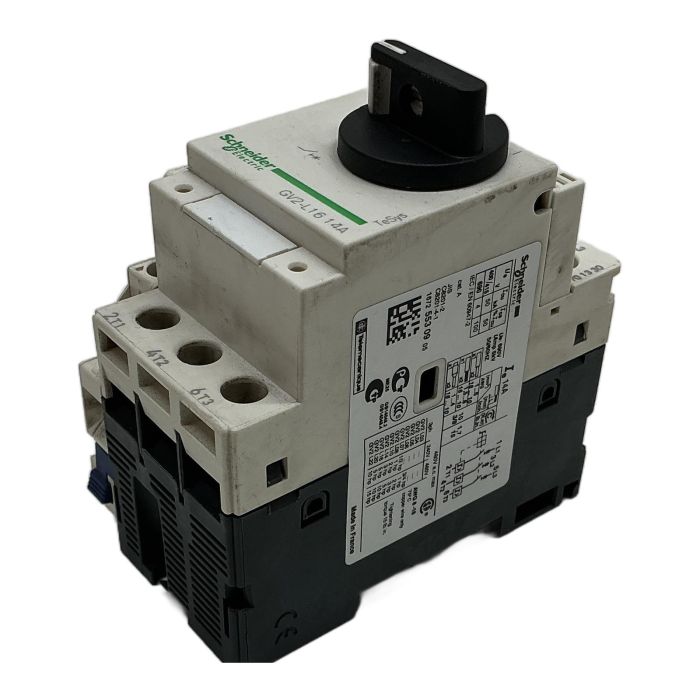

Schneider Electric Magnetic Motor Circuit Breaker 14A GV2-L16

Description

The Schneider Electric GV2-L16 from the TeSys GV2 series is a high-performance magnetic motor circuit breaker designed for short-circuit protection of motors. With a rating of 14A and a 3-pole configuration, it provides robust and reliable safety for your industrial applications. Its compact design allows for easy integration into control panels, and the rotary handle ensures straightforward manual operation.

Specifications

• Manufacturer: Schneider Electric
• Product Line: TeSys GV2
• Model: GV2-L16
• Poles: 3-Pole
• Rated Current: 14 A
• Protection Type: Magnetic (Short-circuit only)
• Rated Operational Voltage (Ue): up to 690V AC
• Control Type: Rotary Handle
• Terminals: Screw Clamp

Label Info

• Ith: 14A
• Ue: 690V
• Uimp: 6kV
• Frequency: 50/60Hz
• Standard: IEC/EN 60947-2

Application

This circuit breaker is ideal for protecting three-phase motors against short circuits in various industrial settings, including conveyor systems, pumps, fans, and other machinery. It is typically used in combination with a separate thermal overload relay for complete motor protection.

Country of Origin

This product is proudly Made in France.

CO2 Impact

By purchasing this pre-owned item, you help save approximately 12.0 kg of CO2, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the difference between this GV2-L model and a GV2-ME model?

The GV2-L16 provides magnetic-only protection, which is for short circuits. For complete motor protection against both short circuits and overloads, it must be used with a separate thermal overload relay. A GV2-ME model, in contrast, integrates both thermal (overload) and magnetic (short-circuit) protection into a single unit.

Yes, it is possible. You must wire the three poles in series according to the manufacturer's instructions to ensure correct and safe operation for single-phase applications.

As indicated on the product label, the recommended tightening torque for the screw terminals is 1.7 N.m, which is equivalent to 15 lb.in.
