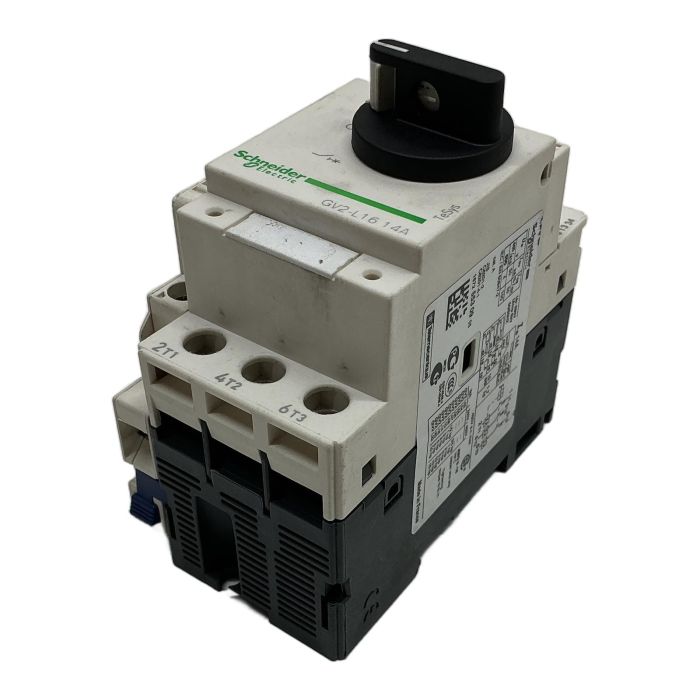

Schneider Electric TeSys GV2L16 Motor Protection Circuit Breaker

Description

The Schneider Electric GV2L16 is a high-performance magnetic motor circuit breaker from the TeSys product family. Engineered for short-circuit protection, it ensures the safety and longevity of your three-phase motors. This unit is rated for 14A and features a user-friendly rotary handle for manual operation. This specific item comes pre-fitted with a GVAD0110 front-mount auxiliary contact block (1 NO + 1 NC) for enhanced control and status monitoring. Its robust construction and reliable performance make it a standard choice for industrial applications worldwide.

Specifications

• Manufacturer: Schneider Electric
• Product Range: TeSys GV2
• Model: GV2L16
• Rated Operational Current: 14 A
• Protection Type: Magnetic (Short-Circuit)
• Number of Poles: 3
• Rated Voltage (Ue): up to 690 V AC
• Control Type: Rotary Handle
• Auxiliary Contact: Includes GVAD0110 (1 NO + 1 NC)
• Mounting: DIN Rail

Label Info

• Main Unit: GV2-L16 14A
• Auxiliary Block: GVAD0110

Application

The GV2L16 is ideal for motor control applications where short-circuit protection is required, often in conjunction with a separate thermal overload relay. It is commonly used in industrial control panels for pumps, fans, conveyors, and other machinery.

Country of Origin

The main circuit breaker is made in France. The auxiliary contact block is made in the Czech Republic.

CO2 Impact

Opting for this reused component prevents the emission of approximately 13.2 kg of CO2, which is comparable to the savings from not driving a standard car for 66 kilometers.

Availability

This unit is a used item in excellent condition, tested and ready for immediate deployment. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the difference between a GV2L and a GV2ME model?

The GV2L series, like this GV2L16, provides magnetic-only (short-circuit) protection for motors. The GV2ME series provides both thermal (overload) and magnetic (short-circuit) protection. The choice depends on whether a separate overload relay is used in the circuit.

No, the GV2L16 has a fixed magnetic trip setting. For this model, the tripping current is instantaneous and set at a high value to protect against short circuits. The 14A rating refers to its rated operational current.

The GVAD0110 is an auxiliary contact block that adds signaling capabilities to the circuit breaker. It provides one normally open (NO) and one normally closed (NC) contact, which can be used to signal the status (on/off/tripped) of the breaker to a PLC, indicator light, or other control devices.
