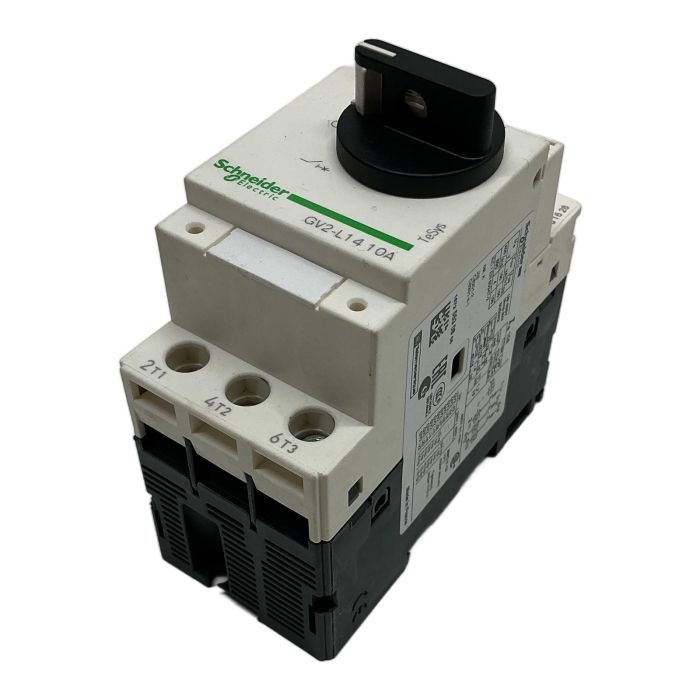

Schneider Electric GV2-L14 Motor Circuit Breaker

Description

The Schneider Electric GV2-L14 is a robust 3-pole magnetic motor circuit breaker from the TeSys product line. It provides essential short-circuit protection for motors up to 10A. Featuring a convenient rotary handle for manual operation, this device ensures reliable performance and safety in a compact form factor, making it an ideal choice for a wide range of industrial motor control applications.

Specifications

• Manufacturer: Schneider Electric
• Type Number: GV2-L14
• Product Range: TeSys
• Product Type: Motor Circuit Breaker (Magnetic)
• Number of Poles: 3
• Rated Current (Ie): 10 A
• Rated Operational Voltage (Ue): 690V AC
• Control Type: Rotary Handle
• Mounting: DIN Rail

Label Info

• Standards: IEC/EN 60947-2, JIS C8201-2, C8201-4-1
• Breaking Capacity (Icu) at 400/415V: 100 kA
• Rated Impulse Withstand Voltage (Uimp): 6 kV

Application

This motor circuit breaker is primarily used for the protection of three-phase AC motors against short-circuits. It is commonly found in control panels for conveyors, pumps, fans, and other industrial machinery.

Country of Origin

This product is Made in France.

CO2 Impact

By choosing this pre-owned component, you are contributing to a circular economy and helping to avoid approximately 12 kg of CO2 emissions compared to purchasing a new one. This saving is equivalent to charging over 1400 smartphones.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the difference between the GV2-L and GV2-ME series?

The GV2-L series, like this GV2-L14, provides magnetic protection only, which is for short-circuit events. The GV2-ME series offers both thermal (overload) and magnetic (short-circuit) protection in a single device.

Yes, it is possible to use this 3-pole breaker for single-phase motors. This typically involves wiring the poles in series according to the manufacturer's specific instructions to ensure proper current sensing and tripping.

As indicated on the device label, the rated ultimate short-circuit breaking capacity (Icu) is 100 kA at 400/415V, which makes it suitable for installation in systems with high prospective fault currents.
