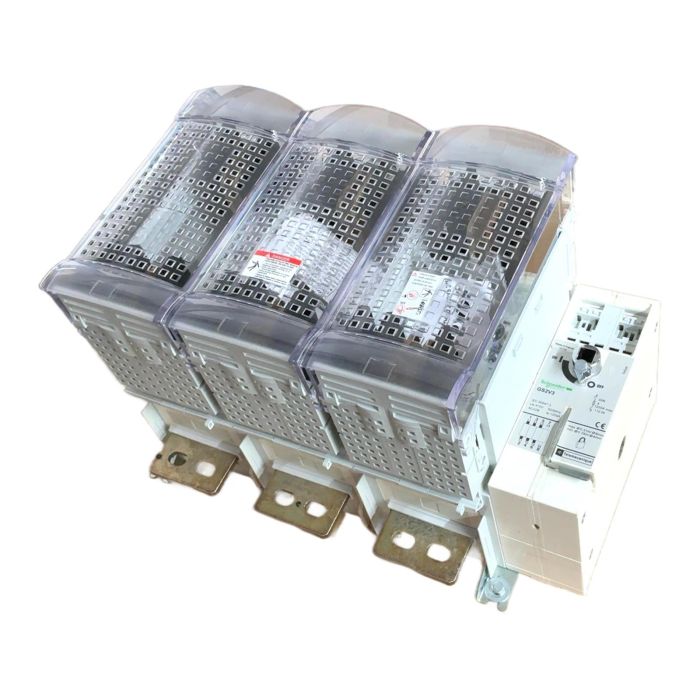

Schneider Electric TeSys GS 1250A Switch Disconnector

Description

The Schneider Electric GS2V3 is a high-performance 3-pole switch disconnector fuse from the TeSys GS range. It is designed for making and breaking circuits under load and providing safety isolation and overcurrent protection for any low voltage electrical circuit. With a rated current of 1250A, it is suitable for demanding industrial main switchboard applications. The visible break and positive break indication ensure a high level of safety for maintenance operations.

Specifications

• Manufacturer: Schneider Electric
• Part Number: 941076
• Model: GS2V3
• Range: TeSys GS
• Number of Poles: 3P
• Rated Operational Current (Ie): 1250 A at 415 V AC-22B
• Fuse Size: DIN 4
• Control Type: Direct front rotary handle (not included)
• Standards: IEC 60947-3
• Power Dissipation: 110 W

Label Info

• Brand: Schneider Electric / Telemecanique
• Model: GS2V3
• Compliance: CE marked

Application

This switch disconnector is ideal for use as a main incoming switch, a distribution board switch, or for local isolation of machinery in industrial and commercial environments. Its high breaking capacity ensures protection against short-circuits in high-power systems.

Country of Origin

Made in France.

CO2 Impact

By purchasing this reused item, you contribute to a circular economy and avoid the emission of approximately 380 kg of CO2, which is equivalent to the manufacturing of a new unit. This saving is comparable to driving a car for 1900 km.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What size and type of fuses are compatible with the GS2V3?

This switch disconnector is designed for use with DIN size 4 fuses. It is compatible with aM and gG type fuses up to its rated current of 1250A, depending on the protection requirements of the specific application.

Yes, the TeSys GS series supports a range of accessories, including auxiliary contact blocks for status indication (ON/OFF). These are typically mounted on the side of the switch mechanism.

For a switch of this rating, it is critical to follow the manufacturer's installation guide. The recommended tightening torque for the M12 bolts on the power terminals is typically in the range of 50 to 70 Nm. Always verify with the official Schneider Electric documentation before installation.
