TeSys GS - switch-disconnector fuse - 3 P - 125 A - NFC 22 x 58 mm: Specifications, Main, Range, TeSys, Product name, TeSys GS, Device short name, GS1 K, Product or component type, Switch-disconnector-fuse, Device application, Protection, Poles description, 3P, Protected poles description, 3t, Contacts type and composition, 3 NO, [Ith] conventional free air thermal current, 125 A (at 40 °C), [Ie] rated operational current, 100 A at 440 V 2 poles in series per phase DC-23A, 100 A at 440 V 2 poles in series per phase DC-23B, 100 A at 690 V with terminal cover AC-23A, 100 A at 690 V with terminal cover AC-23B, 125 A at 400 V AC-23A, 125 A at 400 V AC-23B, 125 A at 500 V AC-23A, 125 A at 500 V AC-23B, Fuse type, NFC, Fuse size, 22 x 58 mm, Network type, DC, AC, Network frequency, 50/60 Hz, Complementary, Type of operating handle, Direct right side, mounting support, Plate, [Ui] rated insulation voltage, 750 V AC 50/60 Hz, [Uimp] rated impulse withstand voltage, 8 kV, Rated operational power in W, 90 kW at 690 V, 63 kW at 400 V, 90 kW at 500 V, Breaking capacity, 11 W, Making capacity, 1250 A at 400 V AC-23B, Breaking capacity, 1000 A at 400 V (AC-23B), Short-circuit withstand, 20 kA, Mechanical durability, 10000 cycles, Electrical durability, 1000 cycles AC-23A, 1000 cycles AC-23B, Connections - terminals, Power circuit: bars, Power circuit: lugs-ring terminals35…95 mm² flexible, [Icm] rated short-circuit making capacity, 100 kA at 400 V with protection by gG fuses, Tightening torque, Power circuit: 12 N.m - on bars, Power circuit: 12 N.m - on lugs-ring terminals, Environment, Standards, IEC 60947-3, product certifications, CE, Protective treatment, TH, IP degree of protection, IP20 conforming to IEC 60529 (with terminal cover), ambient air temperature for operation, -20…70 °C, Ambient air temperature for storage, -40…80 °C

• Specifications:
• Main: Range
• TeSys: Product name
• TeSys GS: Device short name
• GS1 K: Product or component type
• Switch-disconnector-fuse: Device application
• 3P: Poles description
• 3t: Protected poles description
• 3 NO: Contacts type and composition
• 125 A (at 40 °C): [Ith] conventional free air thermal current
• 100 A at 440 V 2 poles in series per phase DC-23A, 100 A at 440 V 2 poles in series per phase DC-23B, 100 A at 690 V with terminal cover AC-23A, 100 A at 690 V with terminal cover AC-23B, 125 A at 400 V AC-23A, 125 A at 400 V AC-23B, 125 A at 500 V AC-23A, 125 A at 500 V AC-23B: [Ie] rated operational current
• NFC: Fuse type
• 22 x 58 mm: Fuse size
• DC, AC: Network type
• 50/60 Hz: Network frequency
• Complementary:
• Direct right side mounting support: Type of operating handle
• 750 V AC 50/60 Hz: [Ui] rated insulation voltage
• 8 kV: [Uimp] rated impulse withstand voltage
• 90 kW at 690 V, 63 kW at 400 V, 90 kW at 500 V: Rated operational power in W
• 11 W: Breaking capacity
• 1250 A at 400 V AC-23B: Making capacity
• 1000 A at 400 V (AC-23B): Breaking capacity
• 20 kA: Short-circuit withstand
• 10000 cycles: Mechanical durability
• 1000 cycles AC-23A, 1000 cycles AC-23B: Electrical durability
• Power circuit: bars, Power circuit: lugs-ring terminals35…95 mm² flexible: Connections - terminals
• 100 kA at 400 V with protection by gG fuses: [Icm] rated short-circuit making capacity
• 12 N.m - on bars, 12 N.m - on lugs-ring terminals: Tightening torque
• Environment:
• IEC 60947-3: Standards
• CE: Product certifications
• TH: Protective treatment
• IP20 conforming to IEC 60529 (with terminal cover): IP degree of protection
• -20…70 °C: Ambient air temperature for operation
• -40…80 °C: Ambient air temperature for storage

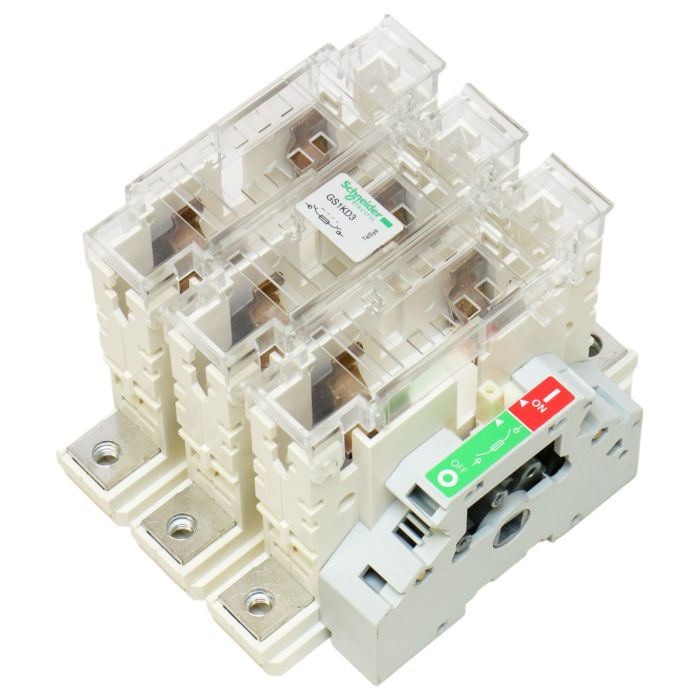

GS1KD3 025394 Schneider Electric is a high-quality electrical component essential for various industrial applications. It can be purchased at PLC2Day to ensure smooth and efficient operation of your machinery.
