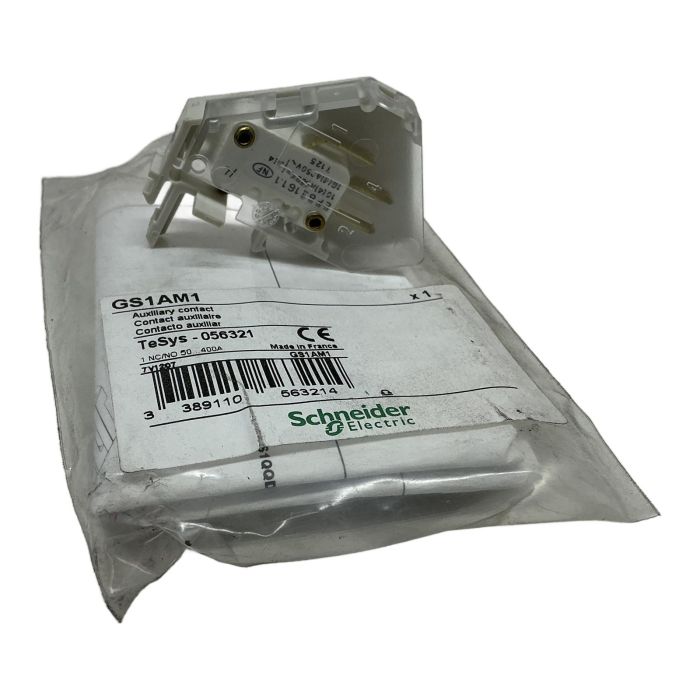

Schneider Electric GS1AM1 Auxiliary Contact Block

Description

The GS1AM1 is a high-quality auxiliary contact block from Schneider Electric, designed for the TeSys GS range of switch-disconnector-fuses. This component adds signaling and control functionality to your main switch, providing one normally open (NO) and one normally closed (NC) contact. It is essential for applications requiring status feedback, electrical interlocking, or integration into a wider control system. Its robust construction ensures reliable performance in demanding industrial environments. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: Schneider Electric
• Model: GS1AM1
• Part Number: 056321
• Product Range: TeSys GS
• Contact Configuration: 1 NO + 1 NC
• Conventional Free Air Thermal Current (Ith): 10 A
• Rated Insulation Voltage (Ui): 690 V AC
• Connections: Screw clamp terminals

Label Info

• Brand: Schneider Electric
• Type: GS1AM1
• Identifier: TeSys - 056321
• Barcode: 3389110563214

Application

This auxiliary contact is used with TeSys GS switch-disconnector-fuses in various industrial applications, including motor control centers, main switchboards, and distribution panels to signal the open or closed state of the main switch.

Country of Origin

Made in France.

CO2 Impact

Opting for a reused component like this one saves approximately 1.2 kg of CO2, which is comparable to the emissions from a 6-kilometer car journey.

Availability

This item is in stock and ready for immediate dispatch.

FAQ

The GS1AM1 is designed for use with the Schneider Electric TeSys GS series of switch-disconnector-fuses, specifically for models ranging from 50A to 400A.

This contact block uses screw clamp terminals, suitable for solid or stranded conductors, typically up to 2.5 mm squared.

Yes, depending on the specific TeSys GS switch model, it is often possible to mount more than one auxiliary contact block to provide multiple signaling outputs. Always consult the switch's technical documentation for mounting limitations.
