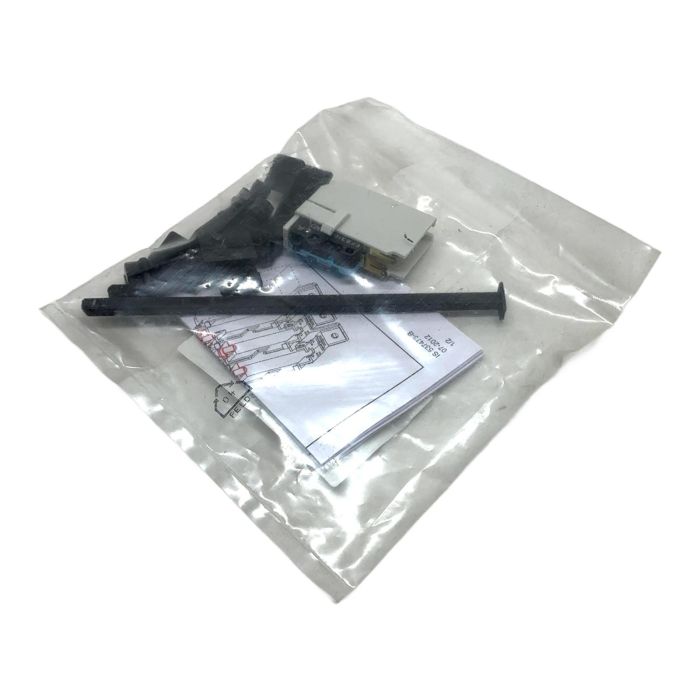

Schneider Electric GS1AF33 Auxiliary Contact for TeSys GS

Description

The GS1AF33 is a blown fuse auxiliary contact block from Schneider Electric, designed for the TeSys GS series of fuse-switch disconnectors. It provides reliable signaling of a fuse failure, allowing for immediate action and reducing system downtime. This accessory is essential for control panels where remote monitoring of circuit protection status is required.

Specifications

• Manufacturer: Schneider Electric
• Type: GS1AF33
• Part Number: 056332
• Product Range: TeSys GS
• Function: Blown fuse auxiliary contact
• Contact Configuration: 1 Normally Open (NO) + 1 Normally Closed (NC)
• Compatibility: For 3-pole fuse-switch disconnectors up to 160A

Label Info

• TeSys-056332
• 1 NC/NO 3x 160A TO
• EAN: 3389110563320

Application

Ideal for integration into industrial control systems, machinery, and power distribution panels where TeSys GS fuse-switch disconnectors are used. It enables automated alerts or system shutdowns in the event of a fuse blowing.

Country of Origin

Made in France.

CO2 Impact

Choosing this component saves approximately 2.0 kg of CO2 compared to manufacturing a new one. This is equivalent to the CO2 emissions from driving a car for 10 km.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What TeSys GS models is the GS1AF33 compatible with?

The GS1AF33 is designed for use with Schneider Electric TeSys GS1 3-pole fuse-switch disconnectors, including models GS1D, GS1DD, GS1E, GS1F, GS1G, GS1J, GS1K, and GS1L, rated up to 160A.

It is a mechanically operated contact. When a fuse blows, a striker pin on the fuse extends and physically actuates the mechanism within the GS1AF33, causing its NO and NC contacts to change state. This change can be used to trigger an alarm, light, or PLC input.

The auxiliary contacts are typically rated for control circuit voltages. According to the datasheet, the operational current is 2A at 240V AC-15 and 0.1A at 250V DC-13. Always consult the official product documentation for specific application ratings.
