Schneider Electric TeSys GB2 Motor Circuit Breaker

Description

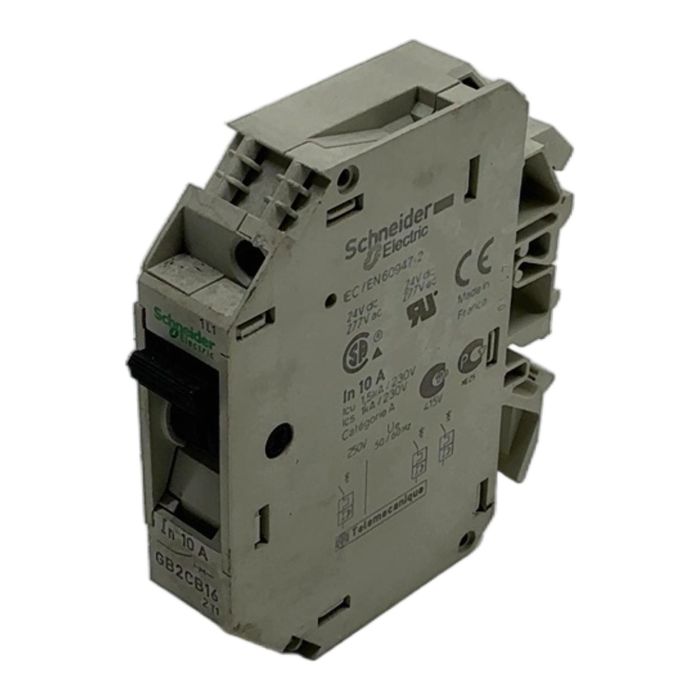

The GB2CB16 is a thermal-magnetic motor circuit breaker from the Schneider Electric TeSys GB2 range. It is engineered to provide reliable protection for motors against short circuits and overloads. This 10A breaker is a compact and robust solution for industrial control panels, ensuring the safety and longevity of your equipment. Its simple DIN rail mounting makes for quick and easy installation.

Specifications

• Manufacturer: Schneider Electric
• Part Number: GB2CB16
• Series: TeSys GB2
• Rated Current (In): 10 A
• Rated Voltage (Ue): up to 415V AC, 50/60 Hz
• Breaking Capacity (Icu): 1.5 kA at 230V AC
• Protection Type: Thermal-Magnetic
• Mounting: DIN Rail

Label Info

• Standard Compliance: IEC/EN 60947-2
• Certifications: CE, UL, CSA

Application

This motor circuit breaker is ideal for use in industrial automation, HVAC systems, and conveyor systems to protect small single-phase or three-phase asynchronous motors.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned component, you are avoiding the emission of approximately 4.8 kg of CO2 associated with the production of a new one. This saving is equivalent to the CO2 absorbed by a mature tree over several months.

Availability

This is an obsolete item but available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

The GB2CB16 typically has a trip characteristic suitable for motor protection, designed to handle motor inrush currents without nuisance tripping while providing sensitive overload protection.

Yes, the label indicates ratings for DC circuits (24V dc). However, its primary design and breaking capacity ratings are optimized for AC motor circuits. Always consult the full datasheet for specific DC application limitations.

No, the TeSys GB2 and the newer GV2 series have different physical dimensions and accessory mounting systems. You must use accessories specifically designed for the GB2 range.
