Schneider Electric Multi 9 Miniature Circuit Breaker

Description

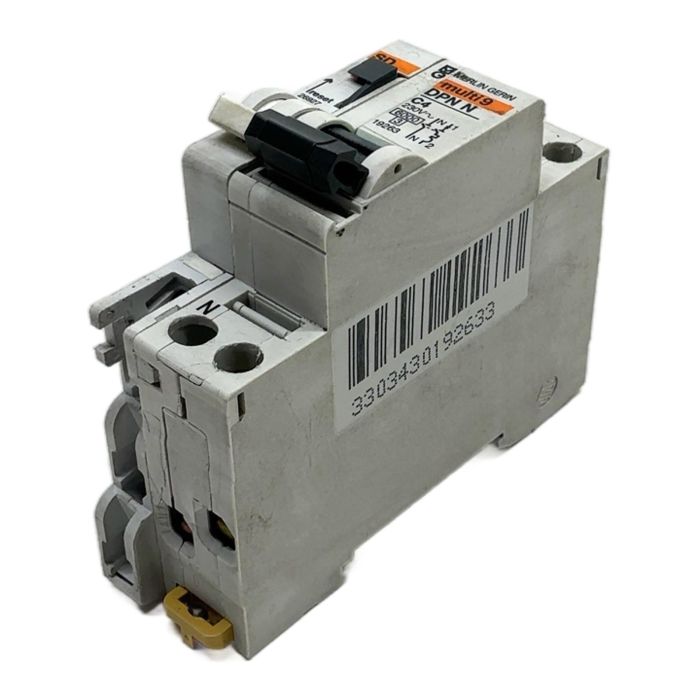

This is a DPN N C4 miniature circuit breaker from the robust Multi 9 series by Schneider Electric (Merlin Gerin). It is a 1P+N (single pole + neutral) device designed for reliable overcurrent and short-circuit protection in a variety of electrical installations. As an obsolete part, it is ideal for maintaining or repairing existing systems that utilize the Multi 9 platform.

Specifications

• Manufacturer: Schneider Electric (Merlin Gerin)
• Product Line: Multi 9
• Model: DPN N C4
• Part Number: 19263
• Poles: 1P+N
• Rated Current: 4A
• Tripping Curve: C
• Rated Voltage: 230V AC
• Breaking Capacity: 6000 A (6 kA) according to EN/IEC 60898
• Mounting: DIN Rail

Label Info

• Brand: MERLIN GERIN
• Type: DPN N C4
• Voltage: 230V
• Reference: 19263
• Standard: EN/IEC 60898

Application

Designed for final circuit protection in residential, commercial, and industrial buildings. The C-curve characteristic makes it suitable for general purpose applications with moderate inrush currents, such as lighting and socket-outlets.

Country of Origin

Made in Vietnam.

CO2 Impact

By purchasing this reconditioned circuit breaker, you help avoid the production of a new one, saving an estimated 4.8 kg of CO2. This saving is comparable to the emissions from driving a standard car for 24 kilometers.

Availability

This is an obsolete item, available from our stock. Condition is used but fully functional. Order now from PLC2Day for expert support and fast delivery.

FAQ

A DPN N breaker provides overcurrent protection on the phase (P) pole only, while the neutral (N) pole is a solid, non-protected, but switched link. This ensures the neutral is always disconnected along with the phase, which is a safety requirement in many installations. A standard 2P breaker provides overcurrent protection on both poles.

Yes, this is a direct replacement in terms of form factor (DIN rail mounting) and basic function. The modern equivalent is the Acti9 iDPN N series. Always ensure the voltage, current rating (4A), and tripping curve (C) match your application's requirements.

The '6000' indicates the ultimate breaking capacity of the circuit breaker in Amperes (6000A or 6 kA). This is the maximum short-circuit current it can safely interrupt. The '3' in the box represents the energy limiting class, which signifies its ability to quickly extinguish an arc and limit the total energy let-through during a fault, protecting downstream equipment.
