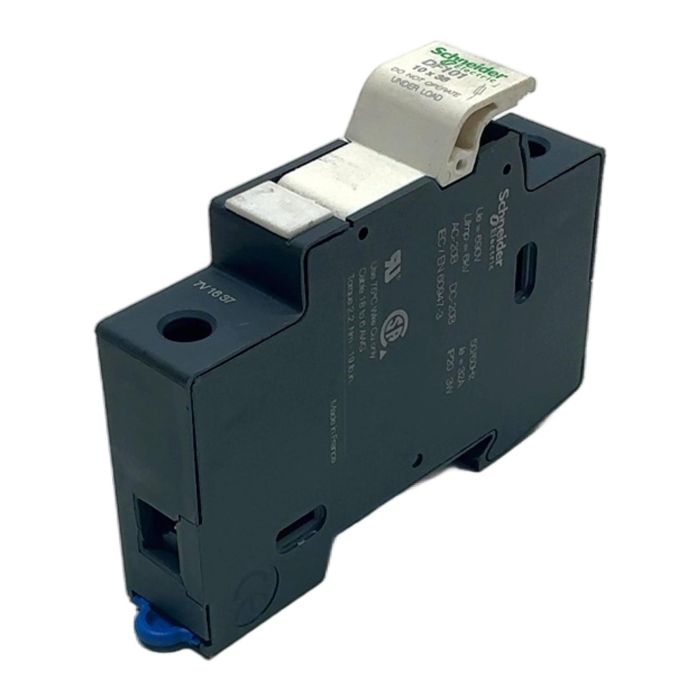

Schneider Electric DF101 TeSys Fuse Disconnect Switch

Description

The Schneider Electric DF101 is a high-quality, single-pole fuse-disconnector from the TeSys DF range. It is engineered for industrial applications requiring reliable overcurrent protection. This unit is designed to hold a 10 x 38 mm fuse and can handle a rated current of up to 32A at 690V AC. It features a compact, DIN rail mountable design for easy integration into control cabinets and panels.

Specifications

• Manufacturer: Schneider Electric
• Part Number: DF101
• Product Range: TeSys DF
• Number of Poles: 1P
• Rated Operational Current (Ie): 32A
• Rated Operational Voltage (Ue): 690V AC
• Rated Impulse Withstand Voltage (Uimp): 6kV
• Fuse Size: 10 x 38 mm
• Frequency: 50/60Hz
• Mounting Support: 35mm DIN rail
• Protection Rating: IP20
• Standards: IEC/EN 60947-3

Label Info

• Utilization Category: AC-20B, DC-20B
• Cable Size: 18 to 6 AWG
• Tightening Torque: 2.2 Nm / 19 lb.in

Application

Ideal for use in industrial control systems, motor control centers, and electrical distribution panels for providing circuit protection and safe disconnection capabilities.

Country of Origin

Made in France.

CO2 Impact

By choosing this reused component, you help avoid 2.4 kg of CO2 emissions, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The DF101 is designed for use with 10 x 38 mm cylindrical fuses, such as gG or aM types, up to a maximum rating of 32A.

Yes, the label specifies a DC-20B utilization category, confirming its suitability for use in DC circuits under the specified voltage and current ratings.

The terminals can accommodate copper wires ranging from 18 to 6 AWG (approximately 0.75 mm2 to 16 mm2). A tightening torque of 2.2 Nm is recommended for a secure connection.
